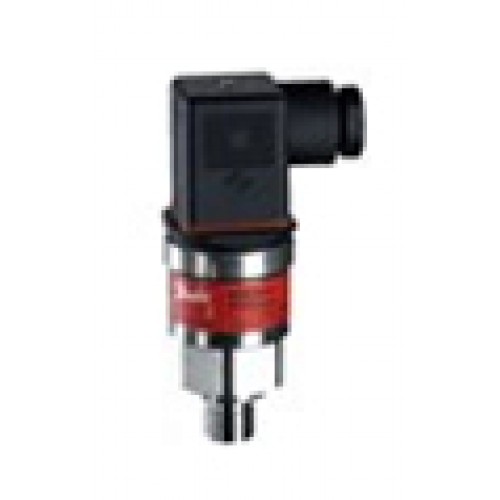

Danfoss pressure transmitter MBS 9200, Compact pressure transmitters

Compact pressure transmitter programme, MBS 9200 is designed for use in industrial applications e.g. crankcase and turbocharger on industrial engines, filters monitoring as well as applications within level measurement.
The programme covers 4 – 20 mA output signal, gauge versions, measuring span from 40 – 250 mbar as well as bidirectional ranges e.g. –70 – 70 mbar etc.
Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
  • Compact design
  • Pressure span from 40 – 250 mbar
  • Bidirectional ranges available (flexible zero point) e.g. -70 – 70 mbar or -20 – 80 mbar etc.
  • Digital temperature compensated
  • Output signal: 4 – 20 mA
  • Excellent shock and vibration robustness
  • Reverse polarity protection
  • With build-in clipping function on request
  • Self-diagnostics
  • Enclosure and wetted parts of stainless steel (AISI 316L)
  • Customer specific versions on request

Code no. Type Pr. reference Pressure range [bar] Pressure conne. type Electrical connection type Accuracy Max. +/- FS [%] Output signal type
064G5214 MBS 9200 Gauge (relative) 0,00 - 0,10 bar G - 1/4 Male EN 175301-803-A, Male 1,00 % 4 - 20 mA
064G5215 MBS 9200 Gauge (relative) 0,00 - 0,25 bar G - 1/4 Male EN 175301-803-A, Male 0,50 % 4 - 20 mA
064G5216 MBS 9200 Gauge (relative) 0,00 - 0,15 bar G - 1/4 Male EN 175301-803-A, Male 0,50 % 4 - 20 mA
064G5218 MBS 9200 Gauge (relative) 0,00 - 0,25 bar G - 1/4 Male EN 175301-803-A, Male 0,50 % 4 - 20 mA
