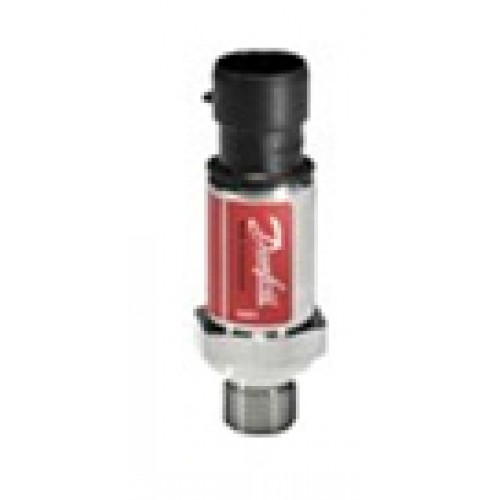

Danfoss pressure transmitter MBS 8250, Slim-line pressure transmitters with pulse-snubber
MBS 8250 with integrated pulse-snubber is designed for use in hydraulic applications with severe media influences like cavitation, liquid hammer or pressure peaks, and offers a reliable pressure measurement, even under harsh environmental conditions.
- Designed for use in harsh industrial environments
- EMC protection 100 V/m
- Medium temperatures -40 to 125 °C
- 3.3 mA sink / source
- Reverse polarity protected
- Integrated pulse-snubber. Protected against cavitation, liquid hammering and pressure peaks
- Enclosure and wetted parts of AISI 316L
- Digitally temperature calibrated
- RoHS conformity
- Accuracy, typical +/-0.5% FS
| Code no. | Type | Pr. reference | Pressure range [bar] | Pressure range [psi] | Pressure conne. type | Electrical connection type | Accuracy Max. +/- FS [%] | Output signal type |
| 064G1064 | MBS 8250 | Gauge (relative) | 0,00 - 600,00 bar | - | G - 1/4 Male | AMP SuperSeal, Male | 0,5 % | 4 - 20 mA |
| 064G1065 | MBS 8250 | Gauge (relative) | 0,00 - 250,00 bar | - | G - 1/4 Male | AMP Econoseal, J-series, 3 pin, Male | 0,5 % | 10 - 90 % ratiometric |
| 064G1073 | MBS 8250 | Gauge (relative) | 0,00 - 160,00 bar | - | G - 1/4 Male | AMP Junior Power Timer, 2 pin, Male | 0,5 % | 4 - 20 mA |
