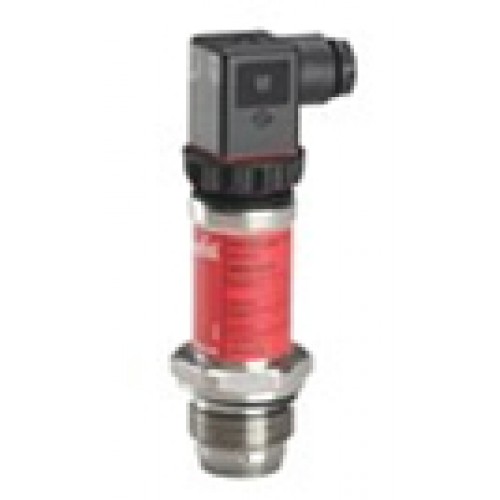

Danfoss pressure transmitter MBS 4510, Pressure transmitters with flush diaphragm and adjustable zero and span
The high accuracy flush diaphragm pressure transmitter MBS 4510 is designed for use in non-uniform, high viscous or crystallizing media within industry, food and beverage, and offers a reliable pressure measurement, even under harsh environmental conditions.
The pressure transmitter programme covers a 4-20 mA output signal, absolute and gauge (relative) versions, measuring ranges from 0-250 mbar til 0-25 bar, zero point and span adjustment, plug connection and a G1A conic pressure connection with a flush mounted diaphragm.
Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
The pressure transmitter programme covers a 4-20 mA output signal, absolute and gauge (relative) versions, measuring ranges from 0-250 mbar til 0-25 bar, zero point and span adjustment, plug connection and a G1A conic pressure connection with a flush mounted diaphragm.
Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
- 4 - 20 mA output signal
- Operating temperature -40 to 85° C
- Measuring ranges 0 - 250 mbar to 0 - 25 bar
- Available with many different pressure connections
- With zero point and span adjustment
- With flush diaphragm
- For use in food and beverage industry as well as industrial applications with aggressive, heterogeneous and highly viscous media
| Code no. | Type | Pr. reference | Pressure range [bar] | Pressure range [psi] | Pressure conne. type | Electrical connection type | Accuracy Max. +/- FS [%] | Output signal type |
| 060G1605 | MBS 4510 | Absolute | 0,00 - 1,60 bar | - | G - 1 Male | Pg 9, EN 175301-803-A, Male and Female | 0,2 % | 4 - 20 mA |
| 060G1844 | MBS 4510 | Gauge (relative) | -0,25 - 0,50 bar | - | G - 1 Male | Pg 9, EN 175301-803-A, Male and Female | 0,2 % | 4 - 20 mA |
| 060G2418 | MBS 4510 | Gauge (relative) | 0,00 - 0,25 bar | - | G - 1 Male | Pg 9, EN 175301-803-A, Male and Female | 0,2 % | 4 - 20 mA |
| 060G2419 | MBS 4510 | Gauge (relative) | 0,00 - 0,40 bar | - | G - 1 Male | Pg 9, EN 175301-803-A, Male and Female | 0,2 % | 4 - 20 mA |
| 060G2420 | MBS 4510 | Gauge (relative) | 0,00 - 0,60 bar | - | G - 1 Male | Pg 9, EN 175301-803-A, Male and Female | 0,2 % | 4 - 20 mA |
| 060G2421 | MBS 4510 | Gauge (relative) | 0,00 - 1,00 bar | - | G - 1 Male | Pg 9, EN 175301-803-A, Male and Female | 0,2 % | 4 - 20 mA |
| 060G2422 | MBS 4510 | Gauge (relative) | 0,00 - 1,60 bar | - | G - 1 Male | Pg 9, EN 175301-803-A, Male and Female | 0,2 % | 4 - 20 mA |
| 060G2423 | MBS 4510 | Gauge (relative) | 0,00 - 2,50 bar | - | G - 1 Male | Pg 9, EN 175301-803-A, Male and Female | 0,2 % | 4 - 20 mA |
| 060G2424 | MBS 4510 | Gauge (relative) | 0,00 - 4,00 bar | - | G - 1 Male | Pg 9, EN 175301-803-A, Male and Female | 0,2 % | 4 - 20 mA |
| 060G2425 | MBS 4510 | Gauge (relative) | 0,00 - 6,00 bar | - | G - 1 Male | Pg 9, EN 175301-803-A, Male and Female | 0,2 % | 4 - 20 mA |
| 060G2426 | MBS 4510 | Gauge (relative) | 0,00 - 10,00 bar | - | G - 1 Male | Pg 9, EN 175301-803-A, Male and Female | 0,2 % | 4 - 20 mA |
| 060G2427 | MBS 4510 | Gauge (relative) | 0,00 - 16,00 bar | - | G - 1 Male | Pg 9, EN 175301-803-A, Male and Female | 0,2 % | 4 - 20 mA |
| 060G2428 | MBS 4510 | Gauge (relative) | 0,00 - 25,00 bar | - | G - 1 Male | Pg 9, EN 175301-803-A, Male and Female | 0,2 % | 4 - 20 mA |
| 060G2430 | MBS 4510 | Absolute | 0,00 - 4,00 bar | - | G - 1 Male | Pg 9, EN 175301-803-A, Male and Female | 0,2 % | 4 - 20 mA |
