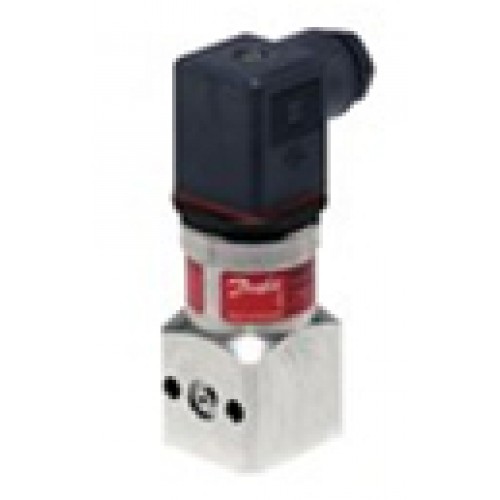

Danfoss pressure transmitter MBS 3300, Pressure transmitter for high temperature marine applications

The compact high temperature pressure transmitter is designed for use in almost all marine applications, and offers a reliable pressure measurement, even under harsh environmental conditions.

The flexible pressure transmitter programme covers different output signals, absolute and gauge (relative) versions, measuring ranges from 0 – 1 to 0 – 600 bar and a wide range of pressure and electrical connections.

A robust design, an exellent vibration stability, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent marine requirements.

Designed for use in severe maritime environments
For medium and ambient temperatures up to 125 °C
Low supply voltage
Output signal:  4 – 20 mA, 0 – 5 V, 1 – 5 V, 1 – 6 V, 0 – 10 V
Enclosure and wetted parts of AISI 316L
A wide range of pressure and electrical connections
Temperature compensated, linearized and laser adjusted
ATEX zone 2
UL Haz loc Class 1, Div 2

Code no.	Type	Pr. reference	Pressure range [bar]	Pressure range [psi]	Pressure conne. type	Electrical connection type	Accuracy Max. +/- FS [%]	Output signal type
060G5918	MBS 3300	Absolute	0,00 - 9,00 bar	-	G - 12 x 1.5 Male	Pg 13.5, EN 175301-803-A, Male and Female	0,5 %	4 - 20 mA
060G5919	MBS 3300	Absolute	0,00 - 17,00 bar	-	G - 12 x 1.5 Male	Pg 13.5, EN 175301-803-A, Male and Female	0,5 %	4 - 20 mA
