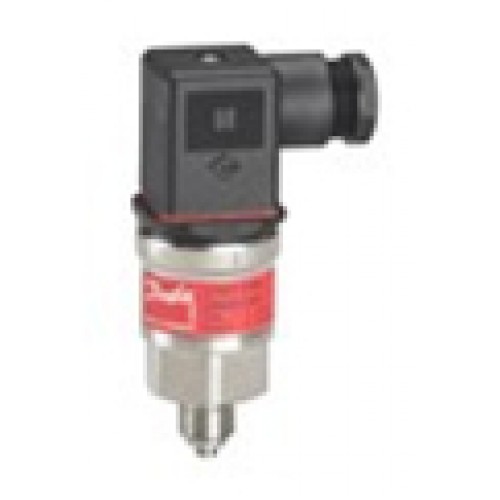

Danfoss pressure transmitter MBS 3100, Compact pressure transmitters for marine applications

Danfoss pressure transmitter MBS 3100, Compact pressure transmitters for marine applications
The compact ship approved pressure transmitter MBS 3100 is designed for use in almost all marine applications, and offers a reliable pressure measurement, even under harsh environmental conditions.
The flexible pressure transmitter programme is approved according to LR, DNV, GL, RINA, ABS, BV, NKK, PRS, MRS requirements and covers a 4-20 mA output signal, absolute and gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar, plug and cable connections and a wide range of pressure connections.
Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent marine requirements.
  • 4 - 20 mA output signal
  • Operating temperature -40 to 85° C
  • Measuring range 0 - 600 bar
  • Standard pressure connection G 1/4A DIN 16288, G 1/4A, O-ring DIN 3852 G 1/2A DIN 16288
  • Available with all relevant marine approvals
  • Suited for marine applications





Code no. Type Pr. reference Pressure range [bar] Pressure range [psi] Pressure conne. type Electrical connection type Accuracy Max. +/- FS [%] Output signal type
060G1367 MBS 3100 Gauge (relative) 0,00 - 4,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1368 MBS 3100 Gauge (relative) 0,00 - 6,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1369 MBS 3100 Gauge (relative) 0,00 - 10,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1370 MBS 3100 Gauge (relative) 0,00 - 16,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1371 MBS 3100 Gauge (relative) 0,00 - 25,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1372 MBS 3100 Gauge (relative) 0,00 - 40,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1463 MBS 3100 Gauge (relative) 0,00 - 4,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1464 MBS 3100 Gauge (relative) 0,00 - 6,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1465 MBS 3100 Gauge (relative) 0,00 - 10,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1466 MBS 3100 Gauge (relative) 0,00 - 16,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1467 MBS 3100 Gauge (relative) 0,00 - 25,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1468 MBS 3100 Gauge (relative) 0,00 - 40,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1469 MBS 3100 Gauge (relative) 0,00 - 4,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1470 MBS 3100 Gauge (relative) 0,00 - 6,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1471 MBS 3100 Gauge (relative) 0,00 - 10,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1472 MBS 3100 Gauge (relative) 0,00 - 16,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1473 MBS 3100 Gauge (relative) 0,00 - 25,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1612 MBS 3100 Gauge (relative) 0,00 - 4,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1613 MBS 3100 Gauge (relative) 0,00 - 6,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1614 MBS 3100 Gauge (relative) 0,00 - 10,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1615 MBS 3100 Gauge (relative) 0,00 - 16,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1616 MBS 3100 Gauge (relative) 0,00 - 25,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1617 MBS 3100 Gauge (relative) 0,00 - 40,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1714 MBS 3100 Gauge (relative) 0,00 - 30,00 bar - M - 14 x 1.5 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1743 MBS 3100 Gauge (relative) 0,00 - 2,50 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1810 MBS 3100 Gauge (relative) 0,00 - 160,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1945 MBS 3100 Gauge (relative) 0,00 - 60,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G1999 MBS 3100 Gauge (relative) 0,00 - 25,00 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3388 MBS 3100 Gauge (relative) 0,00 - 40,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3532 MBS 3100 Gauge (relative) 0,00 - 1,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3567 MBS 3100 Gauge (relative) 0,00 - 30,00 bar - M - 18 x 1.5 Male Bayonet, DIN 72585, Male 0,5 % 4 - 20 mA
060G3648 MBS 3100 Absolute 0,00 - 4,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3649 MBS 3100 Gauge (relative) 0,00 - 400,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3722 MBS 3100 Gauge (relative) 0,00 - 6,00 bar - G - 1/4 Male EN 175301-803-A, Male 0,5 % 4 - 20 mA
060G3746 MBS 3100 Gauge (relative) 0,00 - 4,00 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3747 MBS 3100 Absolute 0,00 - 1,60 bar - NPT - 1/4-18 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3748 MBS 3100 Absolute 0,00 - 6,00 bar - NPT - 1/4-18 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3749 MBS 3100 Absolute 0,00 - 10,00 bar - NPT - 1/4-18 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3873 MBS 3100 Gauge (relative) 0,00 - 1,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3878 MBS 3100 Gauge (relative) 0,00 - 400,00 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3879 MBS 3100 Absolute 0,00 - 2,50 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3881 MBS 3100 Gauge (relative) 0,00 - 16,00 bar - M - 18 x 1.5 Male Bayonet, DIN 72585, Male 0,5 % 4 - 20 mA
060G3893 MBS 3100 Gauge (relative) 0,00 - 400,00 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3895 MBS 3100 Gauge (relative) 0,00 - 160,00 bar - G - 1/4 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3917 MBS 3100 Gauge (relative) 0,00 - 7,00 bar - M - 18 x 1.5 Male Bayonet, DIN 72585, Male 0,5 % 4 - 20 mA
060G3925 MBS 3100 Gauge (relative) 0,00 - 16,00 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G3926 MBS 3100 Gauge (relative) 0,00 - 25,00 bar - M - 18 x 1.5 Male Bayonet, DIN 72585, Male 0,5 % 4 - 20 mA
060G3963 MBS 3100 Gauge (relative) -1,00 - 3,00 bar - G - 1/2 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G4472 MBS 3100 Gauge (relative) 0,00 - 6,00 bar - G - 1/4 Male EN 175301-803-A, Male 0,5 % 4 - 20 mA
060G4531 MBS 3100 Gauge (relative) 0,00 - 6,00 bar - NPT - 1/4-18 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5517 MBS 3100 Gauge (relative) 0,00 - 4,00 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5526 MBS 3100 Gauge (relative) 0,00 - 10,00 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5528 MBS 3100 Gauge (relative) 0,00 - 250,00 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5529 MBS 3100 Gauge (relative) 0,00 - 400,00 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5530 MBS 3100 Absolute 0,00 - 1,60 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5531 MBS 3100 Absolute 0,00 - 10,00 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5532 MBS 3100 Absolute 0,00 - 25,00 bar - NPT - 1/4-18 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5600 MBS 3100 Gauge (relative) -1,00 - 1,50 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5601 MBS 3100 Gauge (relative) -1,00 - 5,00 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5612 MBS 3100 Gauge (relative) 0,00 - 2,50 bar - G - 1/2 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5624 MBS 3100 Gauge (relative) 0,00 - 2,50 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5625 MBS 3100 Gauge (relative) 0,00 - 10,00 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5635 MBS 3100 Gauge (relative) -1,00 - 5,00 bar - G - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5636 MBS 3100 Gauge (relative) -1,00 - 5,00 bar - G - 1/4 Male EN 175301-803-A, Male 0,5 % 4 - 20 mA
060G5927 MBS 3100 Absolute 0,00 - 2,50 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5928 MBS 3100 Gauge (relative) 0,00 - 2,50 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G5929 MBS 3100 Gauge (relative) 0,00 - 40,00 bar - G - 1/4 Male Pg 13.5, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G6218 MBS 3100 Gauge (relative) 0,00 - 6,00 bar - NPT - 1/4-18 Male Pg 11, EN 175301-803-A, Male and Female 0,5 % 4 - 20 mA
060G6325 MBS 3100 Absolute 0,00 - 10,00 bar - G - 1/4 Male M12 x 1, 4 pin, EN 60947-5-2, Male 0,5 % 4 - 20 mA
060G6328 MBS 3100 Gauge (relative) 0,00 - 6,00 bar - G - 1/4 Male Cable 0,5 % 4 - 20 mA
060G6329 MBS 3100 Gauge (relative) 0,00 - 10,00 bar - G - 1/4 Male Cable 0,5 % 4 - 20 mA
