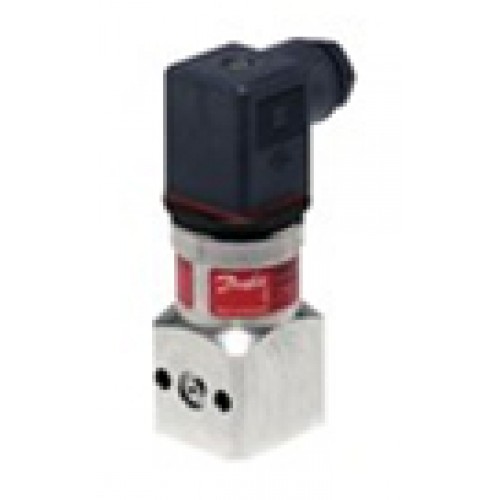

Danfoss pressure transmitter MBS 2150, Pressure transmitters for marine and high temperature with pulse snubber
The compact high temperature pressure transmitter is designed for use in almost all marine applications, and offers a reliable pressure measurement, even under harsh environmental conditions.
The flexible pressure transmitter programme covers different output signals, absolute and gauge (relative) versions, measuring ranges from 0 – 1 to 0 – 600 bar and a wide range of pressure and electrical connections.
A robust design, an exellent vibration stability, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent marine requirements.
- Designed for use in severe maritime environments
- For medium and ambient temperatures up to 125 °C
- Low supply voltage
- Output signal: Ratiometric
- Enclosure and wetted parts of AISI 316L
- A wide range of pressure and electrical connections
- Temperature compensated, linearized and laser adjusted
- ATEX zone 2
- UL Haz loc Class 1, Div 2
| Code no. | Type | Pr. reference | Pressure range [bar] | Pressure range [psi] | Pressure conne. type | Electrical connection type | Accuracy Max. +/- FS [%] | Output signal type |
| 060G3913 | MBS 2150 | Absolute | - | 0,00 - 8.000,00 psi | M - 14 x 1.5 Male | Bayonet, DIN 72585, Male | 0,3 % | 10 - 90 % ratiometric |
| 060G5850 | MBS 2150 | Gauge (relative) | 0,00 - 10,00 bar | - | G - 1/4 Male | Pg 11, EN 175301-803-A, Male and Female | 0,5 % | 10 - 90 % ratiometric |
