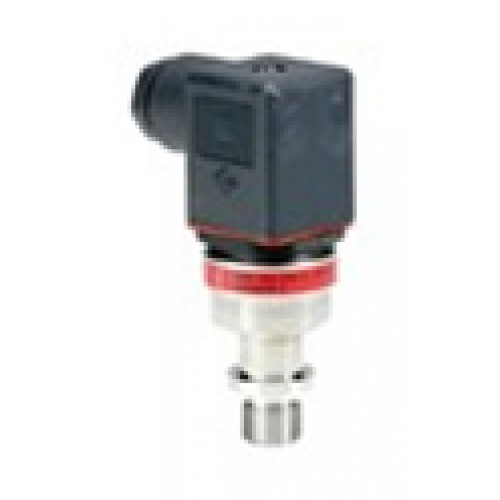

Danfoss pressure transmitter MBS 1900, Pressure transmitter for air and water applications

Danfoss pressure transmitter MBS 1900, Pressure transmitter for air and water applications
The pressure transmitter MBS 1900 is designed for use in air and water applications like Booster Pumps and Air Compressors.
The flexible pressure transmitter programme covers different output signals, absolute and gauge (relative) versions, measuring ranges from 0-4 bar to 0-25 bar and a wide range of pressure and electrical connections.
Enclosure material is stainless steel AISI 316L.
  • Designed for use in air and water applications
  • Wetted parts of stainless steel (AISI 304)
  • Pressure ranges in relative (gauge) or absolute from 0 up to 25 bar
  • Output signals: 4 - 20 mA, or ratio metric
  • Absolute or relative (gauge) sensor element
  • A wide range of pressure and electrical connections
  • Digitally compensated
  • RoHS conformity



Code no. Type Pr. reference Pressure range [bar] Pressure range [psi] Pressure conne. type Electrical connection type Accuracy Max. +/- FS [%] Output signal type
064G6501 MBS 1900 Gauge (relative) 0,00 - 6,00 bar - G - 1/4 Male EN 175301-803-A, Male 1,0 % 4 - 20 mA
064G6502 MBS 1900 Gauge (relative) 0,00 - 10,00 bar - G - 1/4 Male EN 175301-803-A, Male 1,0 % 4 - 20 mA
064G6504 MBS 1900 Gauge (relative) 0,00 - 25,00 bar - G - 1/4 Male EN 175301-803-A, Male 1,0 % 4 - 20 mA
064G6511 MBS 1900 Gauge (relative) 0,00 - 16,00 bar - G - 1/4 Male EN 175301-803-A, Male 1,0 % 4 - 20 mA
064G6514 MBS 1900 Gauge (relative) - 0,00 - 100,00 psi NPT - 1/4-18 Male EN 175301-803-A, Male 1,0 % 4 - 20 mA
064G6521 MBS 1900 Gauge (relative) 0,00 - 6,00 bar - G - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6522 MBS 1900 Gauge (relative) 0,00 - 10,00 bar - G - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6523 MBS 1900 Gauge (relative) 0,00 - 16,00 bar - G - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6524 MBS 1900 Gauge (relative) 0,00 - 25,00 bar - G - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6530 MBS 1900 Gauge (relative) - 0,00 - 250,00 psi NPT - 1/4-18 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6531 MBS 1900 Gauge (relative) 0,00 - 16,00 bar - G - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6532 MBS 1900 Gauge (relative) 0,00 - 16,00 bar - G - 1/4 Male Round Packard Metri-Pack, 3 pin, Male 1,0 % 10 - 90 % ratiometric
064G6533 MBS 1900 Gauge (relative) 0,00 - 16,00 bar - G - 1/4 Male Round Packard Metri-Pack, 3 pin, Male 1,0 % 4 - 20 mA
064G6534 MBS 1900 Gauge (relative) - 0,00 - 100,00 psi NPT - 1/4-18 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6535 MBS 1900 Gauge (relative) - 0,00 - 200,00 psi NPT - 1/4-18 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6536 MBS 1900 Gauge (relative) - 0,00 - 300,00 psi NPT - 1/4-18 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6541 MBS 1900 Gauge (relative) 0,00 - 16,00 bar - G - 1/4 Male Round Packard Metri-Pack, 3 pin, Male 1,0 % 4 - 20 mA
064G6542 MBS 1900 Gauge (relative) 0,00 - 16,00 bar - R - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6543 MBS 1900 Gauge (relative) 0,00 - 10,00 bar - R - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6545 MBS 1900 Gauge (relative) 0,00 - 10,00 bar - NPT - 1/4-18 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6546 MBS 1900 Gauge (relative) 0,00 - 10,00 bar - G - 1/4 Male Cable 1,0 % 4 - 20 mA
064G6561 MBS 1900 Gauge (relative) - 0,00 - 250,00 psi G - 1/4 Male Round Packard Metri-Pack, 3 pin, Male 1,0 % 10 - 90 % ratiometric
064G6563 MBS 1900 Gauge (relative) 0,00 - 25,00 bar - G - 1/4 Male Round Packard Metri-Pack, 3 pin, Male 1,0 % 10 - 90 % ratiometric
064G6564 MBS 1900 Gauge (relative) 0,00 - 10,00 bar - G - 1/4 Male Round Packard Metri-Pack, 3 pin, Male 1,0 % 4 - 20 mA
064G6565 MBS 1900 Gauge (relative) 0,00 - 25,00 bar - G - 1/4 Male Round Packard Metri-Pack, 3 pin, Male 1,0 % 4 - 20 mA
064G6567 MBS 1900 Gauge (relative) 0,00 - 16,00 bar - NPT - 1/4-18 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6571 MBS 1900 Gauge (relative) 0,00 - 25,00 bar - G - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6572 MBS 1900 Gauge (relative) 0,00 - 25,00 bar - R - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6575 MBS 1900 Gauge (relative) 0,00 - 16,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6576 MBS 1900 Gauge (relative) 0,00 - 6,00 bar - G - 1/4 Male Round Packard Metri-Pack, 3 pin, Male 1,0 % 4 - 20 mA
064G6578 MBS 1900 Gauge (relative) 0,00 - 6,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6579 MBS 1900 Absolute 0,00 - 6,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6581 MBS 1900 Absolute 0,00 - 4,00 bar - G - 1/4 Male Round Packard Metri-Pack, 3 pin, Male 1,0 % 10 - 90 % ratiometric
064G6585 MBS 1900 Gauge (relative) 0,00 - 4,00 bar - G - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6586 MBS 1900 Gauge (relative) 0,00 - 10,00 bar - G - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6587 MBS 1900 Gauge (relative) -1,00 - 16,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6589 MBS 1900 Gauge (relative) 0,00 - 20,00 bar - R - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6590 MBS 1900 Gauge (relative) 0,00 - 15,00 bar - G - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6591 MBS 1900 Gauge (relative) - 0,00 - 150,00 psi G - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 10 - 90 % ratiometric
064G6592 MBS 1900 Gauge (relative) -1,00 - 3,00 bar - G - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6594 MBS 1900 Absolute - 0,00 - 100,00 psi NPT - 1/4-18 Male EN 175301-803-A, Male 1,0 % 4 - 20 mA
064G6598 MBS 1900 Gauge (relative) - 0,00 - 250,00 psi R - 1/4 Male Round Packard Metri-Pack, 3 pin, Male 1,0 % 10 - 90 % ratiometric
064G6599 MBS 1900 Gauge (relative) 0,00 - 10,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 1,0 % 4 - 20 mA
064G6601 MBS 1900 Gauge (relative) 0,00 - 16,00 bar - G - 1/4 Male EN 175301-803-A, Male 1,0 % 10 - 90 % ratiometric
