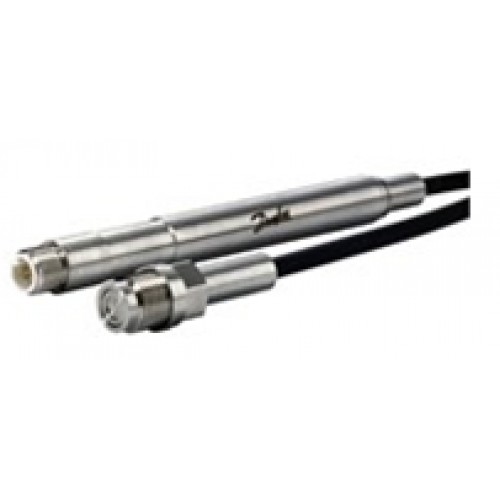

Danfoss pressure transmitter MBS 1800, OEM pressure transmitters for cylinder pressure
Sensor for optimized service life for continuous pressure monitoring in diesel and gas engines. Due to its outstanding precision and long term stability of its quality, this sensor is suitable for demanding monitoring and control tasks.
- Highest precision
- High service life
- Long term stable quality
- Double Shell™ housing
- Patented pre-stressed element
- FE optimised membrane (Nickel based Alloy)
- Compact design for shoulder sealed installation
- Integrated charge amplifier with current or voltage output
- High quality charge amplifier with state of the art drift compensation circuit
| Code no. | Type | Pressure range [bar] | Pressure conne. type | Electrical connection type | Supply voltage [V] d.c. |
| 063H1002 | MBS 1800 | 0,00 - 250,00 bar | M - 10 x 1 Male | M12 x 1, 8 pin, Male | 8,00 - 32,00 V |
| 063H2000 | MBS 1800 | 0,00 - 250,00 bar | M - 18 x 1.5 Male | M12 x 1, 8 pin, Male | 8,00 - 32,00 V |
