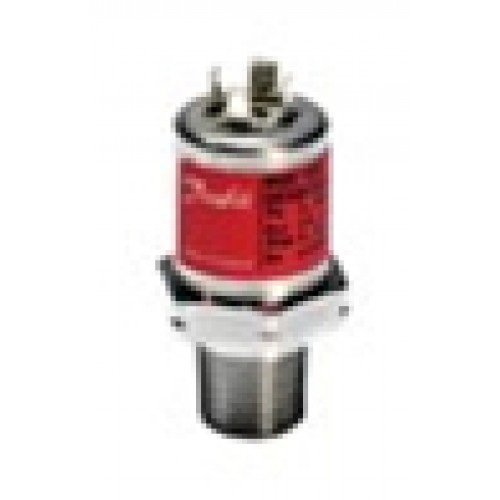

Danfoss pressure transmitter MBS 1350, OEM Pressure transmitter with dual output and pulse snubber
The compact OEM pressure transmitter MBS 1350 is designed for use in industrial applications, where a combination of pressure signal and pressure switch or temperature signal is requested.
The integrated pulse-snubber offers a high degree of protection against cavitations and liquid hammer, and the well thought out design results in excellent vibration stability and an exceptional robustness.
It offers a reliable performance even under harsh environmental conditions.
The high degree of EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
The integrated pulse-snubber offers a high degree of protection against cavitations and liquid hammer, and the well thought out design results in excellent vibration stability and an exceptional robustness.
It offers a reliable performance even under harsh environmental conditions.
The high degree of EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
- Designed for use in severe industrial OEM applications
- For medium and ambient temperatures up to 125 °C
- Wetted parts made of stainless steel
- A wide range of pressure and electrical connections
- EMC protection up to 100 V/m
- UL 508 recognized
- CE marked
| Code no. | Type | Pr. reference | Pressure range [bar] | Pressure range [psi] | Pressure conne. type | Electrical connection type | Accuracy Max. +/- FS [%] | Output signal type |
| 063G1306 | MBS 1350 | Gauge (relative) | 0,00 - 400,00 bar | - | G - 1/4 Male | M12 x 1, 4 pin, EN 60947-5-2, Male | 0,5 % | 1 - 6 V |
| 063G1319 | MBS 1350 | Gauge (relative) | 0,00 - 300,00 bar | - | G - 1/4 Male | M12 x 1, 4 pin, EN 60947-5-2, Male | 0,5 % | 0,1 - 10,1 V |
