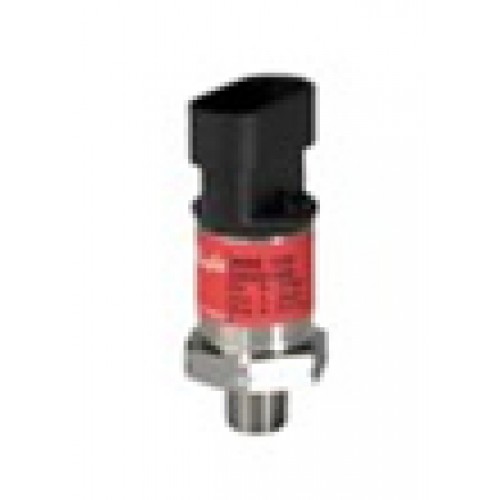

Danfoss pressure transmitter MBS 1200, OEM Pressure transmitter for Industrial applications
The compact OEM pressure transmitter MBS 1200 is designed for use in almost all industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions. Excellent vibration stability, robust construction, and a high degree of EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
- For media and ambient temperatures up to 125°C
- All standard output signals: 4-20mA, 0-5V, 1-5V, 1-6V, 0-10V, 10-90% ratiometric voltage
- Wetted parts made of stainless steel
- A wide range of pressure and electrical connections
- EMC protection up to 100 V/m
| Code no. | Type | Pr. reference | Pressure range [bar] | Pressure range [psi] | Pressure conne. type | Electrical connection type | Accuracy Max. +/- FS [%] | Output signal type |
| 063G1138 | MBS 1200 | Gauge (relative) | 0,00 - 16,00 bar | - | G - 1/4 Male | Rectangular connector, 4 pin, EN 175301-803-C, Male | 0,5 % | 4 - 20 mA |
| 063G1159 | MBS 1200 | Gauge (relative) | 0,00 - 40,00 bar | - | G - 1/4 Male | M12 x 1, 4 pin, EN 60947-5-2, Male | 0,5 % | 4 - 20 mA |
| 063G1171 | MBS 1200 | Gauge (relative) | -1,00 - 10,00 bar | - | G - 1/4 Male | M12 x 1, 4 pin, EN 60947-5-2, Male | 0,5 % | 4 - 20 mA |
| 063G1308 | MBS 1200 | Gauge (relative) | 0,00 - 2.200,00 bar | - | M - 12 x 1.5 Male | M12 x 1, 4 pin, EN 60947-5-2, Male | 0,5 % | 4 - 20 mA |
| 063G1349 | MBS 1200 | Gauge (relative) | - | 0,00 - 300,00 psi | NPT - 1/4-18 Male | Round Packard Metri-Pack, 3 pin, Male | 0,5 % | 4 - 20 mA |
| 063G1489 | MBS 1200 | Gauge (relative) | 0,00 - 10,00 bar | - | NPT - 1/8-27 Male | AMP SuperSeal, 3 pin, Male | 0,5 % | 0 - 5 V |
| 063G1749 | MBS 1350 | Gauge (relative) | 0,00 - 400,00 bar | - | NPT - 1/4-18 Male | Deutsch, 4 pin, Male | 0,5 % | 1 - 5 V |
| 063G1750 | MBS 1200 | Gauge (relative) | 0,00 - 10,00 bar | - | G - 1/4 Male | Rectangular connector, 4 pin, EN 175301-803-C, Male | 0,5 % | 0 - 5 V |
| 063G1902 | MBS 1200 | Gauge (relative) | -1,00 - 10,00 bar | - | NPT - 1/4-18 Male | Round Packard Metri-Pack, 3 pin, Male | 0,5 % | 0,500 - 4,500 V |
| 063G4902 | MBS 1200 | Gauge (relative) | -1,00 - 10,00 bar | - | NPT - 1/4-18 Male | Round Packard Metri-Pack, 3 pin, Male | 0,5 % | 0,500 - 4,500 V |
