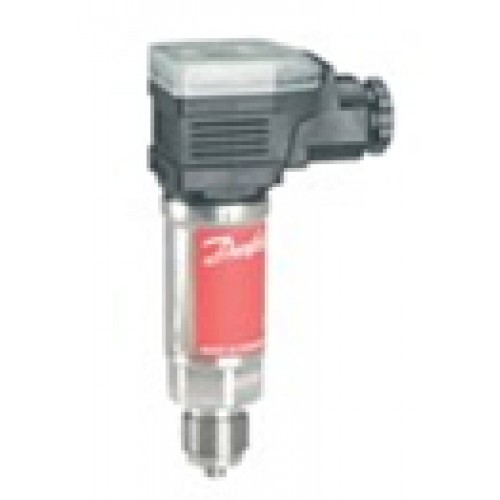

Danfoss pressure transmitter MBS 33M, Pressure transmitters for marine applications
The ship approved pressure transmitter MBS 33M is designed for use in almost all marine applications, and offers a reliable pressure measurement, even under harsh environmental conditions.
The flexible pressure transmitter programme is approved according to LR, DNV, GL, RINA, ABS, BV, NKK, PRS, MRS requirements and covers a 4-20 mA output signal, absolute and gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar, plug and cable connections and a wide range of pressure connections.
Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent marine requirements.
The flexible pressure transmitter programme is approved according to LR, DNV, GL, RINA, ABS, BV, NKK, PRS, MRS requirements and covers a 4-20 mA output signal, absolute and gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar, plug and cable connections and a wide range of pressure connections.
Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent marine requirements.
- 4 - 20 mA output signal
- Operating temperature -40 to 85° C
- Measuring range 0 - 600 bar
- A wide range of pressure connections available
- Available with all relevant marine applications and designed to meet the strict demands on marine equipment
| Code no. | Type | Pr. reference | Pressure range [bar] | Pressure range [psi] | Pressure conne. type | Electrical connection type | Accuracy Max. +/- FS [%] | Output signal type |
| 060G1233 | MBS 33M | Absolute | 0,00 - 4,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G1234 | MBS 33M | Absolute | 0,00 - 6,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G1654 | MBS 33M | Gauge (relative) | 0,00 - 40,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G1655 | MBS 33M | Gauge (relative) | 0,00 - 10,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G1656 | MBS 33M | Gauge (relative) | 0,00 - 6,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G1705 | MBS 33M | Gauge (relative) | -1,00 - 3,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G2159 | MBS 33M | Gauge (relative) | 0,00 - 20,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G2160 | MBS 33M | Gauge (relative) | 0,00 - 5,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3121 | MBS 33M | Gauge (relative) | 0,00 - 1,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3122 | MBS 33M | Gauge (relative) | 0,00 - 1,60 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3123 | MBS 33M | Gauge (relative) | 0,00 - 2,50 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3124 | MBS 33M | Gauge (relative) | 0,00 - 4,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3125 | MBS 33M | Gauge (relative) | 0,00 - 6,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3126 | MBS 33M | Gauge (relative) | 0,00 - 10,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3127 | MBS 33M | Gauge (relative) | 0,00 - 16,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3128 | MBS 33M | Gauge (relative) | 0,00 - 25,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3129 | MBS 33M | Gauge (relative) | 0,00 - 40,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3130 | MBS 33M | Gauge (relative) | 0,00 - 60,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3131 | MBS 33M | Gauge (relative) | 0,00 - 100,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3132 | MBS 33M | Gauge (relative) | 0,00 - 160,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3133 | MBS 33M | Gauge (relative) | 0,00 - 250,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3134 | MBS 33M | Gauge (relative) | 0,00 - 400,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3282 | MBS 33M | Absolute | 0,00 - 2,50 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G3735 | MBS 33M | Absolute | 0,00 - 16,00 bar | - | M - 14 x 1.5 Male | Pg 11, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G5806 | MBS 33M | Gauge (relative) | -1,00 - 6,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
| 060G5807 | MBS 33M | Gauge (relative) | 0,00 - 15,00 bar | - | G - 1/2 Male | Pg 13.5, EN 175301-803-A, Male and Female | 0,3 % | 4 - 20 mA |
