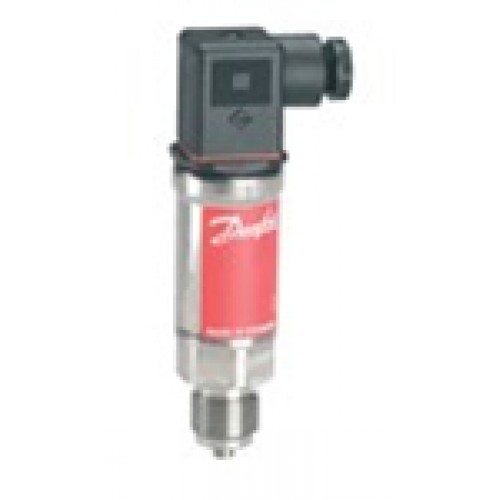

Danfoss pressure transmitter MBS 32, Pressure transmitters with voltage output

Danfoss pressure transmitter MBS 32, Pressure transmitters with voltage output
MBS 32, Pressure transmitters with voltage output
MBS 32 pressure transmitters are designed for use in almost all industrial applications, and offers a reliable pressure measurement, even under harsh environmental conditions.
The flexible pressure transmitter programme covers all standard voltage outputs, absolute and gauge (relative) versions, measuring ranges from 0-1 to 0-600 bar and a wide range of pressure and electrical connections.
Excellent vibration stability, robust construction, and a high degree of EMC/EMI protection equip the pressure transmitter to meet the most stringent industrial requirements.
  • 0-5 V, 1-5 V, 1-6 V or 0-10 V output signals
  • Operating temperature -40 to 85 °C
  • Measuring range 0 - 600 bar
  • A wide range of pressure connections available
  • For use in severe industrial environments


Code no. Type Pr. reference Pressure range [bar] Pressure range [psi] Pressure conne. type Electrical connection type Accuracy Max. +/- FS [%] Output signal type
060G1222 MBS 32 Gauge (relative) 0,00 - 1,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1223 MBS 32 Gauge (relative) 0,00 - 1,60 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1224 MBS 32 Gauge (relative) 0,00 - 2,50 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1225 MBS 32 Gauge (relative) 0,00 - 4,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1226 MBS 32 Gauge (relative) 0,00 - 6,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1228 MBS 32 Gauge (relative) 0,00 - 16,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1229 MBS 32 Gauge (relative) 0,00 - 25,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1239 MBS 32 Gauge (relative) 0,00 - 40,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1249 MBS 32 Gauge (relative) 0,00 - 60,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1259 MBS 32 Gauge (relative) 0,00 - 100,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1260 MBS 32 Gauge (relative) 0,00 - 160,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1261 MBS 32 Gauge (relative) 0,00 - 250,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1263 MBS 32 Gauge (relative) 0,00 - 600,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1264 MBS 32 Absolute 0,00 - 1,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1267 MBS 32 Absolute 0,00 - 4,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1268 MBS 32 Absolute 0,00 - 6,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1269 MBS 32 Absolute 0,00 - 10,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1270 MBS 32 Absolute 0,00 - 16,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1271 MBS 32 Absolute 0,00 - 25,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G1286 MBS 32 Gauge (relative) 0,00 - 16,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 1 - 6 V
060G2085 MBS 32 Gauge (relative) 0,00 - 10,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
060G3029 MBS 32 Gauge (relative) 0,00 - 400,00 bar - G - 1/2 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 1 - 5 V
060G3077 MBS 32 Gauge (relative) -1,00 - 15,00 bar - G - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 1 - 6 V
060G3608 MBS 32 Gauge (relative) 0,00 - 250,00 bar - G - 1/4 Male Pg 9, EN 175301-803-A, Male and Female 0,80 % 1 - 6 V
060G3643 MBS 32 Gauge (relative) 0,00 - 10,00 bar - G Pg 9, EN 175301-803-A, Male and Female 0,80 % 0 - 10 V
