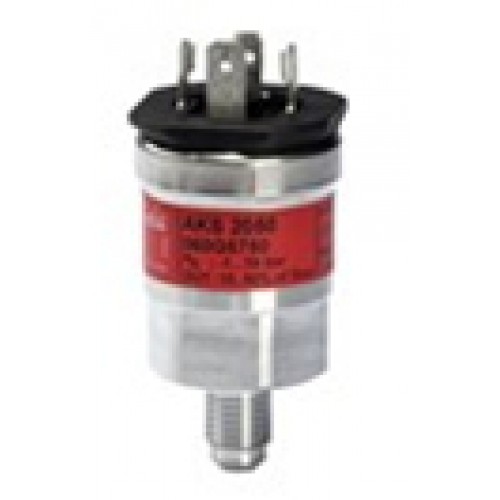

Danfoss pressure transmitter AKS 2050, Pressure transmitters with ratiometric output signal and pulse snubber
AKS 2050, Pressure transmitters with ratiometric output signal and pulse snubber
AKS 2050 is a ratiometric pressure transmitter that converts the measured pressure to a linear output signal. AKS 2050 is for high pressure and with pulse-snubber in the pressure connection. The min. value of the output signal is less than10% of the actual supply voltage. The max. value is more than 90% of the actual supply voltage.
At a supply voltage of 5 V, the output signal is:
- 0.5 V at min pressure range
- 4.5 V at max. pressure range
The robust design and the ratiometric output signal makes the transmitter suitable for systems together with ratiometric A/D converters within a number of fields:
- A/C systems
- Refrigeration plant
- CO2 plant
- Process control
- Laboratories
| Code no. | Type | Pressure range [bar] | Overload pressure max. [bar] | Electrical connection type | Pressure conne. type | Encl. | Compensated temp. range [°C] | Accuracy Max. +/- FS [%] |
| 060G1055 | AKS 2050 | -1,00 - 25,00 bar | 40,0 bar | Pg 9, EN 175301-803-A, Male and Female | M - 16 x 1.5 Male | IP65 | 0 - 80 °C | - |
| 060G1056 | AKS 2050 | -1,00 - 59,00 bar | 200,0 bar | Pg 9, EN 175301-803-A, Male and Female | M - 16 x 1.5 Male | IP65 | 0 - 80 °C | - |
| 060G5750 | AKS 2050 | -1,00 - 59,00 bar | 354,0 bar | EN 175301-803-A, Male | G - 3/8 Male | IP65 | -30 - 40 °C | 1,00 % |
| 060G5751 | AKS 2050 | -1,00 - 99,00 bar | 594,0 bar | EN 175301-803-A, Male | G - 3/8 Male | IP65 | -30 - 40 °C | 1,00 % |
| 060G5752 | AKS 2050 | -1,00 - 159,00 bar | 954,0 bar | EN 175301-803-A, Male | G - 3/8 Male | IP65 | 0 - 80 °C | 1,00 % |
