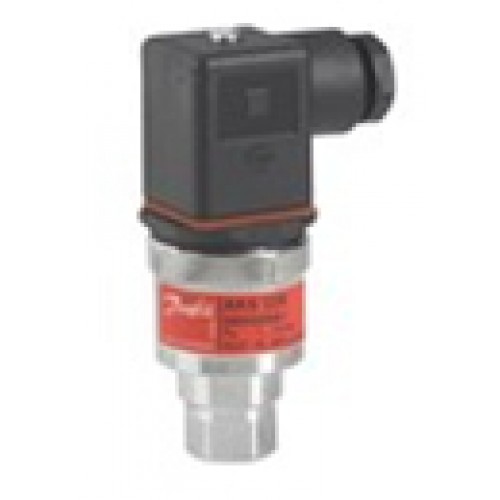

Danfoss pressure transmitter AKS 32R, Pressure transmitters with ratiometric output signal
AKS 32R is a ratiometric pressure transmitter that converts the measured pressure to a linear output signal. The min. value of the output signal is less than10% of the actual supply voltage. The max. value is more than 90% of the actual supply voltage.
At a supply voltage of 5 V, the output signal is:
- 0.5 V at min pressure range
- 4.5 V at max. pressure range
The robust design and the ratiometric output signal makes the transmitter suitable for systems together with ratiometric A/D converters within a number of fields:
- A/C systems
- Refrigeration plant
- CO2 plant
- Process control
- Laboratories
| Code no. | Type | Pressure range [bar] | Pressure range [psi] | Overload pressure max. [bar] | Electrical connection type | Pressure conne. type | Encl. | Accuracy Max. +/- FS [%] |
| 060G0090 | AKS 32R | -1,00 - 34,00 bar | 55,0 bar | EN 175301-803-A, Male | UNF - 7/16-20 Male | IP65 | 0 - 80 °C | 0,80 % |
| 060G0092 | AKS 32R | -1,00 - 9,00 bar | 33,0 bar | Pg 9, EN 175301-803-A, Male and Female | M - 16 x 1.5 Male | IP65 | -30 - 40 °C | 0,80 % |
| 060G0139 | AKS 32R | -1,00 - 9,00 bar | 33,0 bar | Pg 9, EN 175301-803-A, Male and Female | UNF - 7/16-20 Male | IP65 | -30 - 40 °C | 0,80 % |
| 060G1036 | AKS 32R | -1,00 - 12,00 bar | 33,0 bar | EN 175301-803-A, Male | UNF - 7/16-20 Male | IP65 | -30 - 40 °C | 0,80 % |
| 060G1037 | AKS 32R | -1,00 - 12,00 bar | 33,0 bar | EN 175301-803-A, Male | NPT - 1/4-18 Male | IP65 | -30 - 40 °C | 0,80 % |
| 060G1038 | AKS 32R | -1,00 - 12,00 bar | 33,0 bar | EN 175301-803-A, Male | G - 3/8 Male | IP65 | -30 - 40 °C | 0,80 % |
| 060G3551 | AKS 32R | -1,00 - 12,00 bar | 33,0 bar | EN 175301-803-A, Male | Solder, ODF | IP65 | -30 - 40 °C | 0,80 % |
| 060G3552 | AKS 32R | -1,00 - 34,00 bar | 55,0 bar | EN 175301-803-A, Male | Solder, ODF | IP65 | 0 - 80 °C | 0,80 % |
| 060G4561 | AKS 32R | -1,00 - 12,00 bar | 33,0 bar | Pg 9, EN 175301-803-A, Male and Female | UNF - 7/16-20 Female | IP65 | -30 - 40 °C | 0,80 % |
| 060G4562 | AKS 32R | 0,00 - 32,00 bar | 55,0 bar | Pg 9, EN 175301-803-A, Male and Female | UNF - 7/16-20 Female | IP65 | -30 - 40 °C | 0,80 % |
| 060G5706 | AKS 32R | 0,00 - 16,00 bar | 33,0 bar | Pg 9, EN 175301-803-A, Male and Female | UNF - 7/16-20 Male | IP65 | -30 - 40 °C | 0,80 % |
| 060G5707 | AKS 32R | 0,00 - 50,00 bar | 100,0 bar | Pg 9, EN 175301-803-A, Male and Female | UNF - 7/16-20 Male | IP65 | 0 - 80 °C | 0,80 % |
| 060G5961 | AKS 32R | -1,00 - 12,00 bar | 33,0 bar | Pg 9, EN 175301-803-A, Male and Female | UNF - 7/16-20 Female | IP65 | -30 - 40 °C | 0,80 % |
| 060G5962 | AKS 32R | 0,00 - 32,00 bar | 55,0 bar | Pg 9, EN 175301-803-A, Male and Female | UNF - 7/16-20 Female | IP65 | -30 - 40 °C | 0,80 % |
| 060G6156 | AKS 32R | 0,00 - 16,00 bar | 33,0 bar | Pg 9, EN 175301-803-A, Male and Female | Solder, ODF | IP65 | -30 - 40 °C | 0,80 % |
| 060G6323 | AKS 32R | -1,00 - 12,00 bar | 33,0 bar | EN 175301-803-A, Male | UNF - 7/16-20 Female | IP65 | -30 - 40 °C | 0,80 % |
| 060G6324 | AKS 32R | 0,00 - 32,00 bar | 55,0 bar | EN 175301-803-A, Male | UNF - 7/16-20 Female | IP65 | -30 - 40 °C | 0,80 % |
