Product description

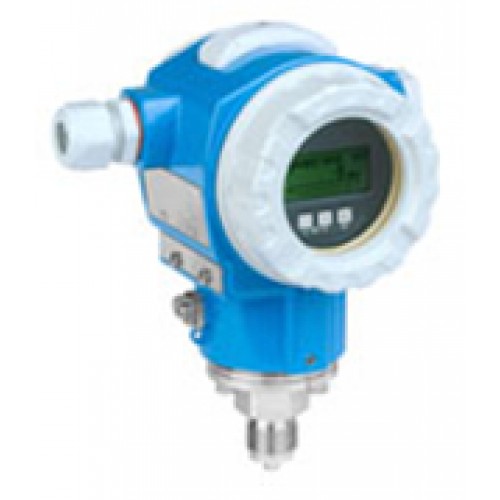

Pressure transmitter with metal sensor
Overload-resistant and function-monitored; Communication via HART, PROFIBUS PA or FOUNDATION Fieldbus
Your benefits
Very good reproducibility and long-term stability
High reference accuracy: up to ±0.075%, as PLATINUM version: ±0.05%
Turn down 100:1, higher on request
Used for process pressure monitoring up to SIL3, certified according to IEC 61508 by TÜV SÜD
HistoROM®/M-DAT memory module
Function-monitored from the measuring cell to the electronics
Continuous modularity for differential pressure, hydrostatic and pressure (Deltabar S, Deltapilot S, Cerabar S), e.g.
- replaceable display
- universal electronic
Quick commissioning thanks to quick setup menu
Menu-guided operation
Extensive diagnostic functions
Cerabar S PMP71 with MID Parts Certificate:
Pressure transmitter with metal sensors
Overload-resistant and function-monitored; Communication via HART; Subcomponent suitable for custody transfer measurement with NMi approval
Your benefits:
Very good reproducibility and long-term stability
High reference accuracy: up to ±0.075%, as PLATINUM version: ±0.05%
Used for process pressure monitoring up to SIL3, certified to IEC 61508 by TÜV SÜD
HistoROM®/M-DAT memory module
Function-monitored from the measuring cell to the electronics
Quick commissioning with Quick Setup menu
Menu-guided operation
Field of application
The Cerabar S pressure transmitter is used for the following measuring tasks:
Absolute pressure and gauge pressure in gases, steams or liquids in all areas of process engineering and process measurement technology
Level, volume or mass measurement in liquids
High pressure up to 700 bar
International usage thanks to a wide range of approvals
Cerabar S PMP71 with MID Parts Certificate:
Cerabar S serves as a component of a system suitable for custody transfer measurement, for highly accurate measurement of pressures, and finds application in
custody transfer. It satisfies the applicable requirements in accordance with OIML R117-1 Edition 2007 (E) and EN 12405-1/A1 Edition 2006.
The Parts Certificate is issued on the basis of the following standards:
WELMEC guide 8.8 "General and Administrative Aspects of the Voluntary System of Modular Evaluation of Measuring instruments under the MID".
OIML R117-1 Edition 2007 (E) "Dynamic measuring systems for liquids other than water".
EN 12405-1/A1 Edition 2006 "Gas meters – Conversion devices – Part 1: volume conversion".
The Cerabar S pressure transmitter is used for the following measuring tasks:
Absolute pressure in gases or liquids in all areas of process engineering and process measurement technology
International usage thanks to a wide range of approvals
