Endress Hauser Differential pressure measurement for flow (Dp flow) Deltatop DP63D
Product description

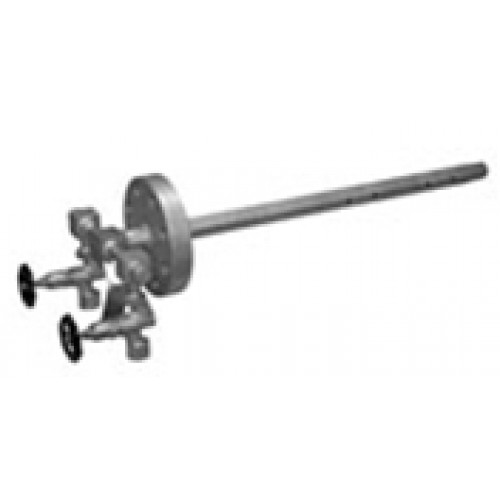

Differential pressure flow measurement with Pitot tube and Deltabar differential pressure transmitter
Your benefits
selectable according to the application:
- operational compact version
- modular remote version
optimized for minimum pressure loss and highest accuracy
Deltabar differential pressure transmitter ready adjusted
display configured for flow rate, differential pressure or 0 ... 100 %
suited for bidirectional measurements
robust design; no moving parts
Field of application
flow measurement of gases, steam and liquids
nominal diameters from 300 ... 4000 mm (12 ... 157")
medium temperatures from -200 °C (-328 °F) to 1000 °C (1830 °F)
pressure up to 420 bar (6300 psi)
compliant to DGRL 97/23/EC
NACE compliant materials
Technical Information (TI)
1. Deltatop DP61D, DP62D, DP63D
Karta katalogowa
Pomiar przepływu z użyciem elementu spi ętrzającego w postaci rurki Pitota oraz przetwornika różnicy ciśnień Deltabar. Uniwersalny system pomiarowy do cieczy, pary i gazów. 10/07 Polish
2. Техни ческое опис ание Deltatop DP61D, DP62D, DP63D
Измер ение расход а по перепа ду давления с помо щью трубок Пито и транс миттера пер епада давле ния Deltabar Униве рсальная из мерительна я система д ля пара, газов и жидк остей 10/07 Russian
3. Deltatop
Differenzdruck-Durchflussmessung mit Staudrucksonden und Differenzdrucktransmitter Deltabar 10/07 German
4. Deltatop DP
Información técnica
Medición de la presión diferencial en fluidos mediante tubos Pitot y transmisor Deltabar de presiones diferenciales. El sistema demedición universal para vapores, gases y líquidos 10/07 Spanish
5. Information technique Deltatop DP61D, DP62D, DP63D
Mesure de débit par sonde de pitot moyennée et transmetteur de pression différentielle Deltabar Système de mesure universel pour la vapeur, les gaz et les liquides 10/07 French
6. Deltatop
Differential pressure flow measurement with Pitot tubes and Deltabar differential pressure transmitter
