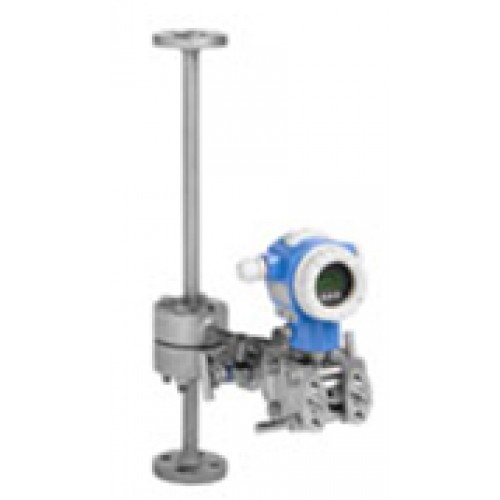

Endress Hauser Differential pressure measurement for flow (Dp flow) Deltatop DO65F
Product description
Differential pressure flow measurement with orifices and Deltabar differential pressure transmitter
Your benefits
selectable according to the application:
- operational compact version
- modular remote version
optimized for minimum pressure loss, highest accuracy and maximum measuring dynamics
measuring range of the Deltabar differential pressure transmitter adjusted on delivery
measurement method globally standardized according to ISO 5167
optional symmetric orifice for bidirectional measurements
robust design; no moving parts
Field of application
flow measurement of gases, steam and liquids
nominal diameters from DN10 (3/8") to DN50 (2")
medium temperatures -200 °C (-328 °F) to 1000 °C (1830 °F)
pressure up to 420 bar (6300 psi)
compliant to DGRL 97/23/EC
NACE compliant materials
Technical Information (TI)
1. Deltatop DO61W, DO62C, DO63C, DO64P, DO56F
Karta katalogowa
Pomiar przepływu z zastosowaniem kryz spiętrzaj ących oraz przetwornika różnicy ciśnień Deltabar. Uniwersalny system pomiarowy do cieczy, pary i gazów. 10/07 Polish
2. Deltatop
Differenzdruck-Durchflussmessung mit Blenden und Differenzdrucktransmitter Deltabar 10/07 German
3. Deltatop
Differential pressure flow measurement with orifices and Deltabar differential pressure transmitter 10/07 English
4. Information technique Deltatop DO61W, DO62C, DO63C, DO64P, DO65F
Mesure de débit par orifice et transmetteur de pression différentielle Deltabar Système de mesure universel pour la vapeur, les gaz et les liquides 10/07 French
5. Deltatop DO61W, DO62C, DO63C, DO64P, DO65F
Измер ение расход а по перепа ду давления с помо щью диафр агм и транс миттера пер епада давле ния Deltabar Униве рсальная из мерительна я система д ля пара, газов и жидк остей. 10/07 Russian
6. Deltatop DO
Información técnica
Medición de presión diferencial en fluidos mediante orificios y transmisor Deltabar de presiones diferenciales. El sistema de medición universal para vapores, gases y líquidos
