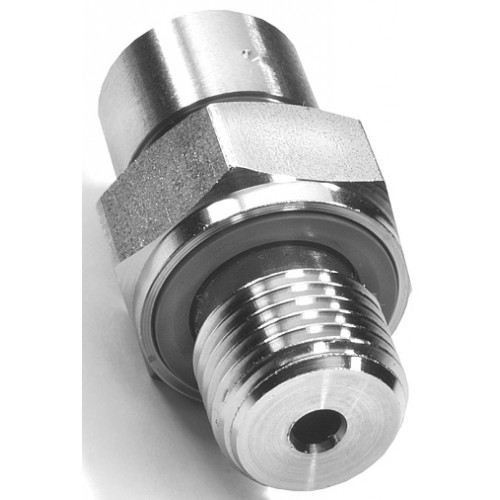

Keller OEM Sensors, Transducers Series 6 / 6T Piezoresistive oem capsule for sealed gauge and vented gauge pressures

The Series 6 capsules are of all welded stainless steel construction, with integral media isolation diaphragm. No !(R)O!ˉring sea are used. The Series 6 uses a silicon TAB sensor mounted in the oil filled stainless steel capsule, providing a highly stable measuring cell with negligible hysteresis, high output signal and a life of millions of pressure cycles. TAB (Tape Automated Bonding) is a flexible printed circuit system for interconnection between the silicon sensor and the capsule output pins, offering improved reliability and significantly lower production costs. Series 6 is a low cost sensor for OEM use, tested for function only, with no calibration data supplied. Series 6T is supplied tested, with calibration certificate: Linearity, sensitivity, zero point, temperature coefficients 0!-5!aC and compensation resistor values (resistors nt supplied).

SPECIFICATIONS (at 4 mA excitation)
Pressure Ranges (FS)
Sealed Gauge (Low Pressure)102050100200bar
Overpressure1530 75 150300bar
Sealed Gauge (High Pressure)400600bar
Overpressure600900bar
Vented Gauge1020bar
Overpressure1530bar
Excitation0,5!-5 mA constant curren
Signal Output (FS)600!-1000 mV @ 4 m
Bridge Resistance3,5 k nominal
Zero Offset !à20 mV typ !à100 mV max
Linearity (incl. Hysteresis) !à0,25% FS typ !à0,50% FS max
Stability !à0,10% FS typ !à0,20% FS max.
Operating Temperature-10!-80!
Temperature-Coefficients of!
- Zero: !à0,01% FS/K typ !à0,05% FS/K max.
- Sensitivity: !à0,01%/K typ !à0,04%/K max
MaterialsDiaphragm AiSi 316LHousing 1.4435
