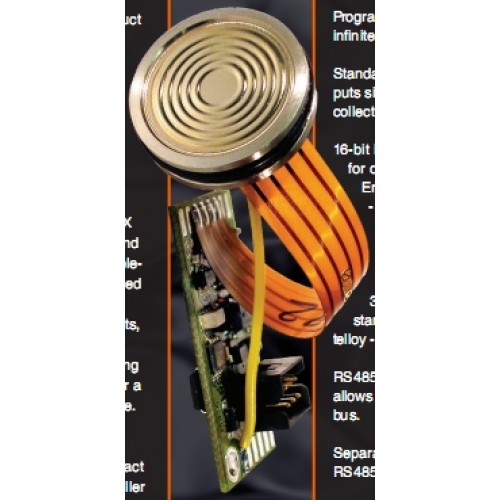

Keller OEM Series 9LX Low Total Error Band O.E.M. Pressure Transmitters
DESCRIPTION
Whether embedded in an OEM product or simply packaged as a high-end pressure transmitter, the Series 9LX enables the OEM to offer superior performance without the need for huge R&D or capital expenditures, and with minimum amount of on
hand inventory. Designed to be easily integrated into a wide variety of applications, the 9LX features a flush-welded diaphragm and highly stable piezoresistive sensing element. Combined with Keller!ˉs advanced signal-conditioning circuitry, the 9LX features dual (analog & digital) outputs, re-rangeability and mathematical error correction. The result is outstanding Total Error Band (TEB) accuracy over a wide compensated temperature range.
FEATURES
Programmable analog outputs enables infinite range options
Standard dual (analog & RS485) outputs simplify interface to controls, data collection, and telemetry systems 16-bit internal digital correction for cost-effective low ±0.1% Total Error Band (TEB) accuracy over
-10...80°C Factory calibrated for guaranteed
“out-of-the-box” performance. 316L SS flush-diaphragm sensor
standard - Optional titanium or hastelloy - C276 for severe applications.
RS485 modified-MODBUS compatible allows up to 128 transmitters on a single bus.
Separate output for temperature via RS485 interface.
SPECIFICATIONS
Available ranges
1,2
Relative 1, 3, 10, and 30 bar
Absolute 1, 3, 10, and 30 bar
Proof Pressure 2X basic range
Accuracy, TEB Analog: !à0.15% FS TE
3
Digital: !à0.1% FS TE
Operating Temperature Range -40...100!a
Compensated Temp. Range -10...80!a
Output 4...20mA + RS485
0...10VDC + RS485
Resolution 0.002% BR
Analog Update Rate 400hz
Supply
Voltage Output 13...28 VDC
Current Output 8...28 VDC
RS485 Only 8...28 VDC
4
Load Resistance
Current <(Supply-8V)/0.02A
Voltage >4k ohm
Electrical Connectivity Solder pads or Molex Milli-grid
(2mm)
Bus Compatibility Modified-MODBUS protocol, up to
128 devices
Construction Materials Std. 316L Stainless Steel
Opt. titanium or Hastelloy C-276
Viton O-ring: 15.6mm ID x
