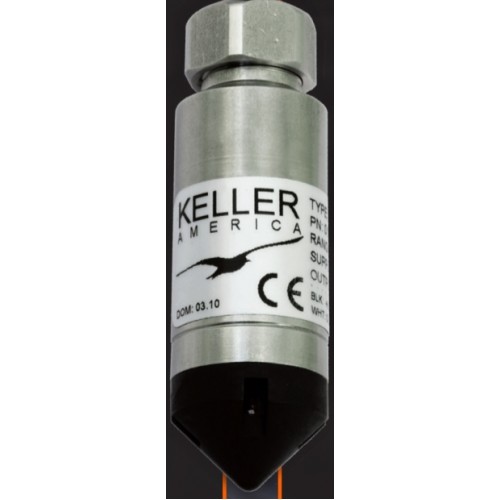

Keller U.S.-Built Econolevel OEM Submersible Level Transmitters

DESCRIPTION
The Econolevel by Keller America is a general purpose submersible level transmitter intended for OEM integration into almost any application involving aggressive media and where small size, weight, and low cost are required. This proven design utilizes a media isolated, piezoresistive silicon sensor, a design known to be highly reliable in thousands of applications around the
globe. Combined with state-of-the-art signal conditioning electronics, the result is a robust transmitter that will provide trouble free service and accurate results.

FEATURES
316L Stainless Steel construction for compatibility with aggressive media Full scale ranges from 11.5 to 231 feet of water
4 1-year warranty covers defects in materials and workmanship. Industry standard 4...20mA output simplifies interface to controls, data collection, and telemetry systems. Built in the U.S.A. ARRA Section 1605 Compliant. Standard 3 day lead time
Minimum order quantities apply APPLICATIONS Pump control Tanks level measurement Groundwater measurement.

SPECIFICATIONS
Available ranges 0-11 feet, 0-34.5 feet, and 0-231 feet 4
Accuracy, TEB Standard 1% FS max.1
Optional 0.5% FS max
Comp. Temp. Range -0...50!a
Operating Temp.  -20...60!a
Output 4...20mA
Supply 8...28VDC
Load Resistance () mA: <(Supply-8V) / 0.02A
Wetted Materials Standard 316L S.S.,  Polyamide,
Fluorocarbon
Cable Std. vented Polyethylene
Opt. Hytrel or Tefzel
Environmental  IP68
Protection
Optional Accessories Drying Tube Assembly
Bellows Assembly
Termination Enclosure
Cable Hanger
Conduit Fitting
Open-faced Nose Cap
