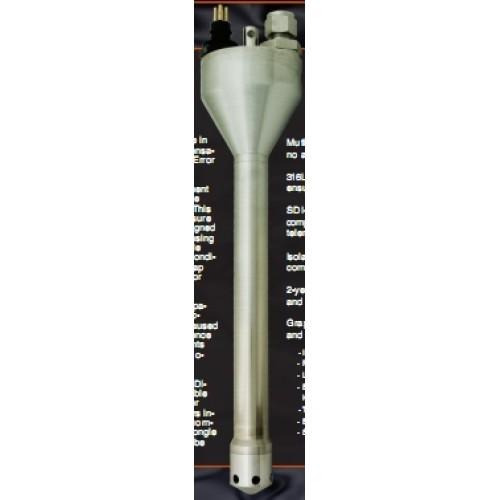

Keller U.S.-Built Digilevel-EC SDI-12 Convertible Level Transmitter
DESCRIPTION
The Digilevel EC by Keller America is specifically designed for long-term deployment in adverse environments common to remote locations. The heart of this instrument is a state-of-the-art, Swiss-produced pressure sensor that incorporates over 30 years of experience in sensor development. Active error compensation circuitry results in outstanding Total Error Band performance. The Digilevel EC is a convertible instrument which may be used for either submersible level or bubbler pressure measurement. This is accomplished by user-selectable pressure connection caps. The conical cap is designed to promote automatic cleaning of the sensing diaphragm, helpful where the submersible level transmitter is deployed in high-silt condi-
tions. The alternate bubbler transmitter cap provides a 1/8!±NPT female pipe thread for connection to the bubbler apparatus.
Also incorporated into the design are separate electrical and reference tube connections. This design minimizes problems caused by condensation of moisture in the reference tube that is possible in some environments when using all-in-one cabling that incorporates a small diameter reference tube.The Digilevel EC is compatible with all SDI-12 v1.3 commands. In addition, it is capableof operating in several emulate modes for popular SDI-12 level/pressure transmitters including manufacturer specific extended commands. A graphical user interface and Dongle are available options for those who may be unfamiliar with SDI-12 commands.
FEATURES
Standard 0.1% FS TEB accuracy 16-bit internal digital error correction for cost-effective low Total Error Band (TEB) Multi-stage lightning protection included at no additional cost. 316L SS flush diaphragm construction ensures longevity in hostile environments SDI-12 Communication Interface for compatibility with SDI-12 data loggers and telemetry Isolated sensor reference connection accommodates ? 3/8 inch O.D. tubing 2-year warranty covers defects in materials and workmanship. Graphical user interface for enhanced setup and communication
- Intuitive device connection and setup utility
- Program and save multiple site configurations
- Live reading mode facilitates on-site setup
- Emulate modes for Tavis, Design Analysis, and
KPSI Series 500 SDI-12 transmitters
- Terminal mode for SDI-12 command input
- Enables direct input of slope + offset parameters
- Several !°canned!± site parameter scenario simplify setup
SPECIFICATIONS
Accuracy
Level < !à0.1% FS T.E.B
1
Temperature !à0.5!
Excitation !à0.5 VD
Resolution 12-bit
Supply 6...20 VDC
Pressure/temp Output SDI-12 Version 1.3
Compensated Temp. Range Std. -10 - 60!a
Available Pressure Ranges 0...10, 0...15, and 0...30m W.C.
Wetted Materials Std. 316L stainless steel, Polyamide,
Fluorocarbon
Electrical Termination Brantner/Sea-con LSG-4-BCL -
Includes 1 each LMG-4-FS3 mating
connector / 0.5m cable
Bubbler Connection 1/8!± NPT Femal
Reference Pressure Compression fitting for ? 0.375!± O.D.
Connection tubing
Protection Rating IP68
