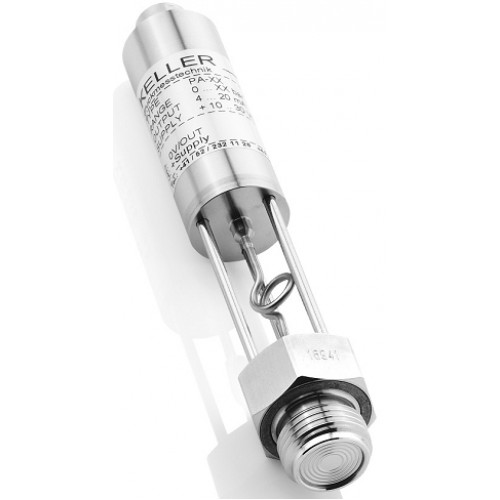

Keller Swiss-Built Series 35X HTC High temperature high accuracy analog digital output pressure transmitter

This piezoresistive high temperature transmitter is suited for media temperatures up to 300°C. The pressure, acting onto the flush diaphragm, is transferred over an oil-filled capillary onto the silicon measuring cell. The capillary has the function of a cooling spiral, allowing media temperatures of up to 300°C. The temperature of the electronics, which can be read out with
the PROG30 software, may not exceed 120°C. For highly aggressive media, KELLER offers pressure ports in different materials. Digital Output of Transmitter These Series are based on the stable, piezoresisitive transducer and a micro-processor electronics with integrated 16 bit A/D converter. Temperature dependencies and nonlinearities of the sensor are mathematically compensated. With the READ30 software and the KELLER cable K-107, the calculated pressure can be displayed on a Palmtop, Laptop or PC. The READ30 software also allows the recording of pressure signals and the graphic display on the PC. Up to 128 transmitters can be hooked together to a Bus-system. Transmitter with Analog Output The micro-processor integrates a D/A converter of 16 bit for analog signal outputs of 4…20 mA or 0…10 V. The output rate is 100 Hz (adjustable). The digital output is available on all transmitters with analog output. Programming With the KELLER software READ30 and PROG 30, a RS485 converter (i.e. K-102, K-104 or K-107 from KELLER) and a PC, the pressure can be displayed, the units changed, a new gain or zero set. The analog output can be set to any range within the compensated range.

SPECIFICATIONS
STANDARD PRESSURE RANGES (FS) AND OVERPRESSURE IN BAR
PR 35 X HTC 3 10 30
PAA 35 X HTC 3 10 30 100 300 1000
Overpressure 5 20 60 200 400 1100
2 Wire 3 Wire
(digital) (analog) (analog)
Output RS485 4…20 mA 0…10 V
Supply (U) 8…28 Vcc 8…28 Vcc 13…28 Vcc
Accuracy, Error Band
1)
(20…300 °C)
2)
0,5 %FS 0,5 %FS 0,5 %FS
1)
Linearity + Hysteresis + Repeatability + Temp. Coeff. + Zero + Span Tolerance
2)
Media Temperature  (temperature of electronics max. 120 °C)
Linearity (best straight line) 0,05 %FS
True Output Rate 100 Hz
Resolution 0,002 %FS
Long Term Stability typ. 0,2 %FS
Load Resistance (Ω) <(U-7V) / 0,02A  (2-wire) > 5’000  (3-wire)
Electrical Connection - Binder-Plug 723 (5 pole)
- DIN 43650 Plug (4 pole)
- MIL C-26482-Plug (6 pole)
Insulation > 10 MΩ / 50 V
Storage- / Operating Temperature Range Media: 0…300 °C        Electronics: 0…120 °C
Pressure Endurance 10 Million Pressure Cycles 0…100 %FS at 25 °C
Vibration Endurance, IEC 68-2-6 20 g (5...2000 Hz, max. amplitude ± 3 mm)
Shock Endurance 20 g (11 ms)
Protection IP65   optional: IP 67
CE-Conformity EN 61000-6-1 to -6-4
Material in Contact with Media Stainless Steel 316L (DIN 1.4435) / Viton®
Weight ≈ 300 g
Dead Volume Change < 0,1 mm3
Mounting - Horizontal position (carrying-off of heat)
- Cooling spiral exposed to room temperature
