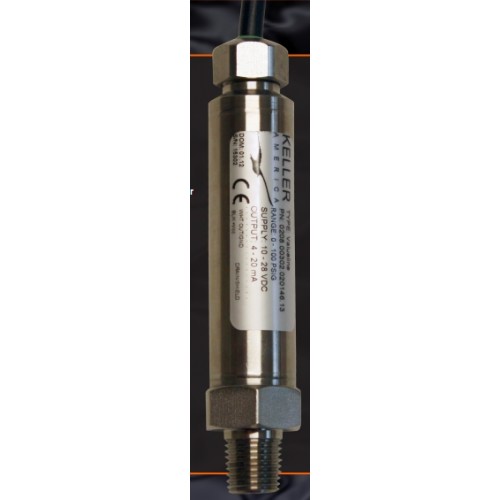

Keller U.S.-Built Valueline High Accuracy Pressure Transmitters
DESCRIPTION
The Valueline by Keller America provides standard features that far exceed those of comparably priced transmitters by combining proven piezoresistive silicon sensor technology with Keller! state-of-the-art signal conditioning circuitry. The result is outstanding !à0.25%. FS standard (!à0.1% optional) Total Error Band (TEB) accuracy over a wide compensate temperature range. The ability of the Valueline to provide this level of sustained performance over a wide range of operating condi-
tions makes it ideally suited to pressure monitoring applications such as tank level measurement, pump control, and
VFD control. Plus, guaranteed lightning protection makes this transmitter ideal for installation in areas prone to chronic
damage due to transients caused by lightning.
FEATURES
4...20mA models include guaranteed lightning protection at no additional cost. 16-bit internal digital error correction for
cost-effective low Total Error Band (TEB)316L stainless steel construction 2-year warranty covers defects in mate-
rials and workmanship. Standard outputs simplify interface to controls, data collection, and telemetry systems.
Various electrical connections for easy integration into new and existing systems.
Cabled versions are rated IP68 and suitable for submersion.
Built in the U.S.A. ARRA Section 160 Compliant.
Standard 3-day lead time at no additional charge.
SPECIFICATIONS
Available ranges
Relative Infinite from 0...2 to 0...500 PSIG
1,2
Absolute Infinite from 0...2 to 0...500 PSIA
1,2
Sealed Infinite from 0...500 to 0...15,000 PSIS
1,2
Proof Pressure Varies by range, 10X for 1 PSI to 1.1X for 15k psi
Accuracy, TEB Standard 0.25% FS TEB
3 3
Optional 0.1% FS TEB
3
Comp. Temp. Range -10...80!a
Operating Temp. Range -40...120!a
Output 4...20 mA, 0...5 VDC, 0...10 VDC
Resolution 0.002% FS
Supply
4...20 mA Output 11...28VDC
4
0...5 VDC Output 8...28VDC
4
0...10 VDC Output 13...28 VDC
4
Load Resistance
Current <(Supply-8V)/0.02A
Voltage >4k ohm
Wetted Materials Standard 316L S.S., Fluorocarbon
Process Connection 1/4!±-18NPT Mal
Electrical Connections std. 10 ft. Cable, DIN43650 , or mPm393
5 5
opt. MIL-C 26482
6
CE-Conformity EN50081-1, EN50082-2
Shock 20g (11ms)
Vibration 20g (5-2KHz, max. amp !à3mm per IEC68-2-6
Environmental Protection
Cable IP68
DIN43650, mPm393 IP65
MIL-C 26482 IP65
Cable Std Polyethylene, opt. Hytrel or Tefzel
Optional Accessories Drying Tube
Aneroid Bellows
1/2!±NPT Conduit Fittin
Termination Enclosure
Digital Meter / Process Controller
Specifications and dimensions are subject to change without notice.
WIRING DIAGRAM
Output Pin 1 / C /White Pin 2 / B / Red Pin 3 / A / Black
7
2-wire (mA) OUT / GND N/A +Vcc
3-wire (VDC) GND +OUT +Vcc
