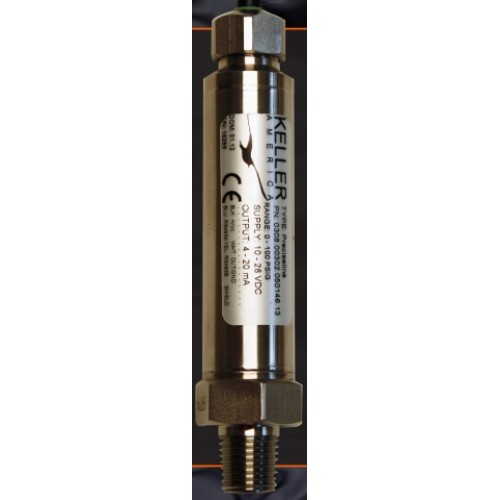

Keller U.S.-Built Preciseline High accuracy analog digital output pressure transmitter
DESCRIPTION
The Preciseline by Keller America pro-vides standard features that far exceed those of comparably priced transmit-
ters by combining proven piezoresistive silicon sensor technology with Keller!ˉs state-of-the-art signal conditioning cir-
cuitry. The result is outstanding !à0.25% FS standard (!à0.1% optional) Total Error Band (TEB) accuracy over a wide com-
pensated temperature range. The ability of the Preciseline to provide this level of sustained performance over a wide range of operating condi-tions makes it ideally suited to pressure monitoring applications such as tank level measurement, pump control, and VFD control. Plus, guaranteed lightning protection makes this transmitter ideal for installation in areas prone to chronic damage due to transients caused by lightning.
FEATURES
4...20mA models include guaranteed lightning protection at no additional cost.16-bit internal digital error correction for
cost-effective low Total Error Band (TEB) 316L stainless steel construction 2-year warranty covers defects in mate-
rials and workmanship. User-rangeable analog output ensures compatibility as requirements change. RS485 modified-MODBUS compatible allows up to 128 transmitters on a single bus. Standard dual (analog & RS485) outputs simplify interface to controls, data collection, and telemetry systems. Built in the U.S.A. ARRA Section 1605, Compliant. Standard 3-day lead time at no additional cost.
SPECIFICATIONS
Available ranges
Relative Infinite from 0...2 to 0...500 PSIG
1,2
Absolute Infinite from 0...2 to 0...500 PSIA
1,2
Sealed Infinite from 0...500 to 0...15,000 PSIS
1,2
Proof Pressure Varies by range, 10X for 1 PSI to 1.1X for 15k psi
Accuracy, TEB Standard 0.25% FS TEB
6 6
Optional 0.1% FS TEB
6
Comp. Temp. Range -10...80!a
Operating Temp. -40...120!a
Output 4...20mA + RS485
0...5VDC + RS485, 0...10 VDC + RS485
Resolution 0.002% FS
Supply
4...20 mA Output 11...28VDC
5
0...5 VDC Output 8...28VDC
5
0...10 VDC Output 13...28 VDC
5
RS485 Only std. 8...28 VDC, opt. 3.3...12VDC
5
Load Resistance
Current <(Supply-8V)/0.02A
Voltage >4k ohm
Wetted Materials Standard 316L S.S., Fluorocarbon
Process Connection 1/4!±-18NPT Mal
Electrical Connections std. 10 ft. Cable, DIN43650 , or mPm 393
3 3
opt. MIL-C 26482
4
CE-Conformity EN50081-1, EN50082-2
Shock 20g (11ms)
Vibration 20g (5-2KHz, max. amp !à3mm per IEC68-2-6
Environmental Protection
Cable IP68
DIN43650, mPm393 IP65
MIL-C 26482 IP65
Cable Std Polyethylene, opt. Hytrel or Tefzel
Optional Accessories Drying Tube, Aneroid Bellows
1/2!±NPT Conduit Fittin
RS485 Converter Cable
Termination Enclosure
Digital Meter / Process Controller
WIRING DIAGRAM
Pin 1 / C / Pin 2 / Pin 3 / A
Output D / Blue F / Yellow
White B / Red / Black
2-wire (mA) OUT / GND N/A +Vcc RS485A RS485B
7
3-wire (VDC) GND +OUT +Vcc RS485A RS485B
7
4-wire RS485 GND N/A +Vcc RS485A RS485B
7
Braided shield wire connected to transmitter housing
8
