Keller U.S.-Built Econoline General Purpose Pressure Transmitters
DESCRIPTION

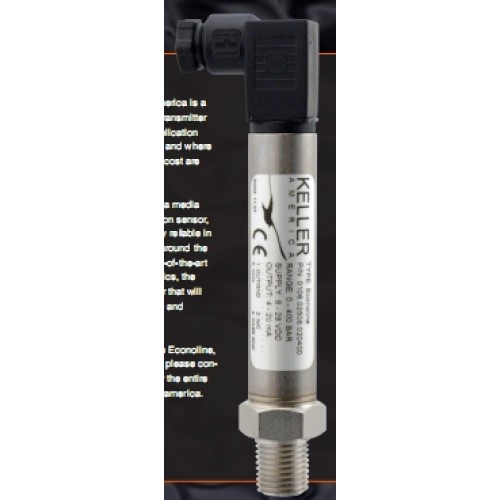

The Econoline by Keller America is a general purpose pressure transmitter intended for almost any application involving aggressive media and where small size, weight, and low cost are required. This proven design utilizes a media isolated, piezoresistive silicon sensor, a design known to be highly reliable in thousands of applications around the globe. Combined with state-of-the-art signal conditioning electronics, the result is a robust transmitter that will provide trouble free service and
accurate results. For more information on the Econoline, or any other Keller product, please con-tact Keller America, or view the entire
FEATURES
316L Stainless Steel construction for compatibility with aggressive media. Full scale ranges from 5 to 10,000 PSI
2-year warranty covers defects in materials and workmanship. Industry standard outputs simplify interface to controls, data collection, and telemetry systems. Built in the U.S.A. ARRA Section 1605 Compliant. Standard 3 day lead time
APPLICATIONS
Pump control
Tanks level measurement
Pipeline pressure measurement
Hydraulic pressure monitoring
SPECIFICATIONS
Available ranges
Relative 0 - 5, 15, 50, 100, 300 PSIG
1
Absolute 0 - 15, 50, 100 PSIA
1
Sealed 0 - 300, 500, 1,000, 3,000, 5,000 &
10,000 PSIS
1
Proof Pressure Varies by range,3X for 5 PSI to 1.1X
for 10k psi
Static Accuracy Standard 1% FS max.
Optional 0.5% FS max
Comp. Temp. Range -0...50!a
Operating Temp. -20...80!a
Thermal Error 0.1% FS / !a C max
Output 4...20mA or 0.5...4.5 VDC
Supply
4...20 mA Output 8...28VDC
0.5...4.5 VDC Output 8...32VDC
Wetted Materials Standard 316L S.S., Flourocarbon
Process Connection 1/4!±-18NPT Mal
Electrical Connections std. 5 ft. PVC Cable or mPm393 with
mate
CE-Conformity EN50081-1, EN50082-2
Shock 20g (11ms)
Vibration 20g (5-2KHz, max. amp !à3mm per
IEC68-2-6)
Environmental IP65
Protection
WIRING
Output Pin 1 / White Pin 2 / Red Pin 3 / Black
2-wire (mA) OUT / GND N/A +Vcc
3-wire (VDC) GND +OUT +Vcc
NOTES
1. PSIG = Gage; Zero-point referenced to local atmospheric pressure.
PSIA = Absolute; Zero-point set at hard vacuum.
PSIS = Sealed Gage; Zero-point set at 1 bar absolute (14.504 PSIA).
2. Dimensions & specifications are subject to change without notice. For the most
accurate and up to date information on all products, visit our website.
3. The drain / shield is connected to the transmitter housing. For best \ protection
against galvanic corrosion, do not ground.
