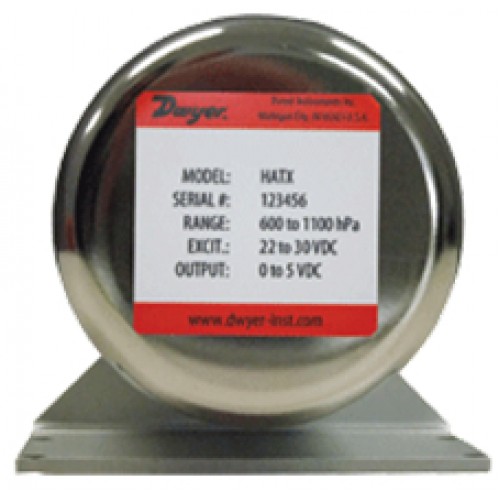

Dwyer pressure transmitter Series HATX High Accuracy Pressure Transmitter

HATX Pressure Transmitter combines high accuracy with exceptional stability and reliability for environmental tests and measurements. All models come with NIST certificates and are available in barometric, absolute, and gage ranges. These transmitters are ideal for a variety of applications such as weather data systems, laser interferometers, altimeter setting indicators, and engine test cells. Series HATX transmitters consume a very low amount of power and possess an exceptionally fast warm-up and response time. With its excellent consistency and great performance, the HATX transmitter is well suited for the most demanding of applications.

SPECIFICATIONS
Service: Non-conducting air/gas.
Wetted Materials: Anodized aluminum, alumina ceramics, gold,
fluorocarbon elastomer sealant & Buna-N O-ring.
Accuracy: <0.05% FS
Stability: <0.1% FS over 6 months @ 70
Pressure Limits:
Barometric Ranges: 800 to 1100 hPa/mb;
600 to 1100 hPa/mb: 20 psia.
Absolute and Gage Ranges: 1.5x of std range.
Temperature Limits:
Operating: 0 to 175F (-18 to 71C
Storage: -65 to 250F (-53 to 121C
Compensated Temperature Range: 30 to 120F (-1 to 49C
Thermal Effect:
Barometric Ranges: <0.2% FS / 100
PSIG and PSIA Ranges: <0.1% FS / 100
Power Requirements: 22 to 32 VDC.
Output Signal: 0 to 5 VDC.
Zero and Span Output:
Zero output: Factory set to within 5 mV
Span (FS) output: Factory set to within 5 mV
Zero and Span Adjustments: None.
Response Time: <10 msec.
Current Consumption: <10 mA.
Electrical Connections: 2 ft multi-conductor cable.
Process Connections: 1/8?-27 NPT internal.
Mounting Orientation: Pressure port 90 parallel to ground.
Weight: 9 oz (255 g).
Agency Approval: CE.

Model	Range
HATX-A-10	0 to 10 psia
HATX-A-11	0 to 20 psia
HATX-A-12	0 to 50 psia
HATX-A-13	0 to 100 psia
HATX-G-20	0 to 5 psig
HATX-G-21	0 to 10 psig
HATX-G-22	0 to 20 psig
HATX-G-23	0 to 50 psig
HATX-G-24	0 to 100 psig
HATX-B-00	800 to 1100 hPa/mb
HATX-B-01	600 to 1100 hPa/mb
