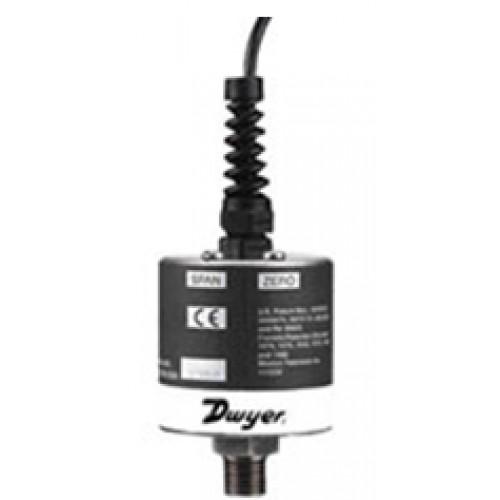

Dwyer pressure transmitter Series 682 Industrial pressure transmitter

SERIES 682 PERFORMANCE SPECIFICATIONS
*
Accuracy RSS 0.13% FS
(at constant temperature)
Non-Linearity, BFSL 0.1% FS
Hysteresis0.08% FS
Non-Repeatability0.02% FS
*RSS of Non-Linearity, Non-Repeatability and Hysteresis.
Thermal Effects
Compensated Range F(C)-4 to +176 (-20 to +80)
Zero Shift %FS/F(C) 1.0 (0.9)
Span Shift %FS/F(C) 1.5 (1.4)
Stability0.5% FS/YR

	Model Number	Description
	682-0	Industrial pressure transmitter, range 0-25 psi, 100 psi overpressure.
	682-1	Industrial pressure transmitter, range 0-50 psi, 150 psi overpressure.
	682-2	Industrial pressure transmitter, range 0-100 psi, 300 psi overpressure.
	682-3	Industrial pressure transmitter, range 0-250 psi, 500 psi overpressure.
	682-4	Industrial pressure transmitter, range 0-500 psi, 1000 psi overpressure.
	682-5	Industrial pressure transmitter, range 0-1000 psi, 2000 psi overpressure.
	682-6	Industrial pressure transmitter, range 0-3000 psi, 4500 psi overpressure.
	682-7	Industrial pressure transmitter, range 0-5000 psi, 7500 psi overpressure.
	682-8	Industrial pressure transmitter, range 0-10000 psi, 12500 psi overpressure.

1.Drill one 1/2°± dia. hole at each end of junction box for cable strain reliefs
Note: If conduit is to be installed, omit one 1/2°± hole and drill appropriat
hole for conduit.
2.Drill and tap one 1/2°± - 13 NC hole in bottom of junction box and instal
loosely one 1/2°± - 13 NC plastic or stainless steel screw.  The clearanc
between threads serves as a vent for the box.
3.Install cable strain reliefs in 1/2°± dia. holes.  If using conduit at one end, b
sure it is sealed properly against moisture.
4.Mount junction box and install cables.
5.A desiccant pack can be placed in the junction box for additional protection.
