The Rosemount standard orifice plate portfolio includes everything needed to engineer and install a flow point. The products are manufactured to meet AGA, ASME, ISO, API and DIN standards. When combined with the Rosemount 3051S or the 3051S MultiVariable™ Transmitter, these primary elements will improve measurement performance, and make installation more convenient and cost effective.
Features of the Rosemount standard orifice plate products include:
Available with universal and paddle type plate designs
Fast and accurate orifice bore calculations available
Wide orifice bore/flow range capability
|

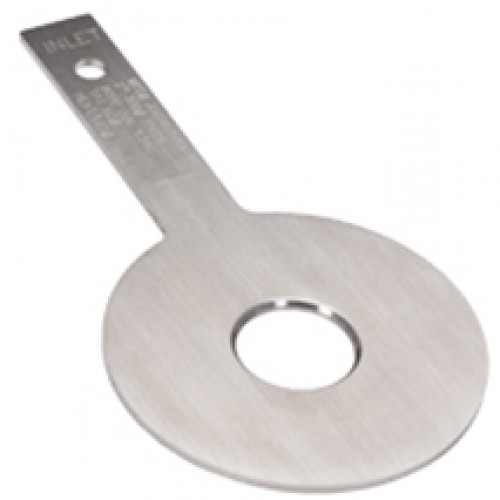

Orifice Plate
|
Flange Union
|
Choose Flange Rating:
ANSI Class 300#, 600#, 900#, 1500#, or 2500#
DIN flange ratings:
PN10, PN16, PN25, PN40, PN63, PN100 |
Choose Flange Rating:
ANSI Class 300#, 600#, 900#, 1500#, or 2500#
DIN flange ratings:
PN10, PN16, PN25, PN40, PN63, PN100 |
Material:
• SST 316/316L ASTM A240
• SST 304/304L ASTM A240
• SST 316Ti DIN 1.4571
• ALLOY C-276 ASTM B575
• ALLOY 400 ASTM B564 |
Material:
• CS ASTM A105 (STANDARD)
• CS ASTM A350 LF2 (PED COMPLIANT - J6)
• SST 316/316L ASTM A182
• SST 304/304L ASTM A182
• SST 316Ti DIN 1.4571
• ALLOY C-276 ASTM B564
• ALLOY 400 ASTM B564 |
Choose Line Size:
• 2 to 24-in. (50 to 600 mm)
• Contact Emerson Process Management for lines less than 2-in. (51 mm) or greater than 24-in. (600 mm) |
Choose Line Size:
• 2 to 24-in. (50 to 600 mm)
• Management for lines less than 2-in. (51 mm) or greater than 24-in. (600mm) |
Choose Plate Thickness:
• Default is 0.125-in. (3.2 mm) for 2 to 6-in (50 to 150 mm) line size
• Default is 0.250-in. (6.35 mm) for 8 to 14-in (200 to 350 mm) line size
• Default is 0.375-in. (9.53) for 16 to 20-in. (400 to 500 mm)
• Default is 0.500-in. (12.7 mm) for 24-in (600 mm) line size |
Choose Flange Union Type:
• Raised Face Weldneck (1496WN)
• Raised Face Threaded (1496TH)
• Raised Face Slip-On (1496SO)
• RTJ weldneck (1496RJ)
• Raised Face DIN Weldneck (1496DN) |
Choose Bore Diameter:
Refer to Instrument Toolkit™ for orifice plate sizing. Or, Emerson Process Management will calculate the bore diameter by specifying option code BC in the 1495 ordering table. Include all of the flowing conditions and pipe information for the application on the CDS. See the "Calculation Data Sheet" for a detailed sizing calculation. |
