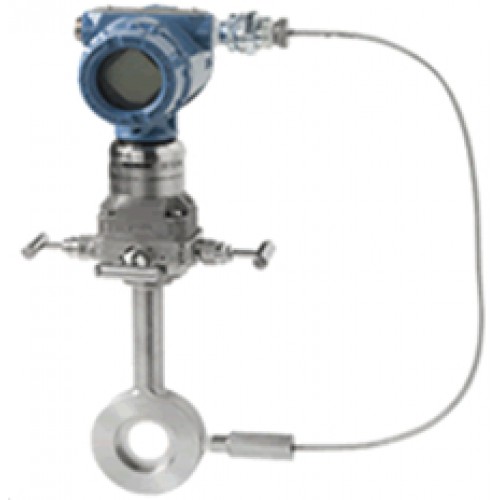

Rosemount pressure transmitter DP Flow Products Compact Orifice Flowmeters
3051SFC, 3095MFC, 3051CFC, 2051CFC, 405P
It’s no coincidence that orifice plates are still the most popular flow technology. They provide reliable and accurate flow measurement for gas, liquid and steam applications. Compact Orifice flowmeter installations are straightforward and affordable.
The Rosemount 405P Compact Orifice Flowmeter is designed for closed loop control and general purpose monitoring applications. This design lowers the total installed cost of DP Flow measurement points eliminating the need for fittings, impulse tubing, valves, adapters and manifolds by providing a single device packaged together for simplified installation. By integrating Rosemount pressure transmitters with the 405 Compact Orifice primary element, we deliver the highest performing Flowmeters which arrive assembled, calibrated, pressure tested, and ready to install.
Features of the Rosemount Compact Orifice Flowmeter include:
- Available up to ANSI 600# pressure rating
- Follows industry standard utilizing ASME and ISO corner tap design
- Installation between existing raised-faced flanges
- Self centering ring ensure optimal accuracy while improving installation
| Fully Integrated Flowmeter |
|
|
| Accuracy | •Mass flow up to 0.8% of mass flow rate, 14:1 turndown •Classic MV up to ±0.85 % of flow rate 8:1 flow turndown |
•Volumetric flow up to 0.8% of volumetric flow rate, 14:1 turndown •Classic MV up to ±0.85% of volumetric flow rate, 8:1 turndown |
| Repeatability | ± 0.1 % | ± 0.1 % |
| Output | •4-20mA signal based on HART® Communication •WirelessHART with Smart Wireless THUM adapter |
•4-20mA signal based on HART® Communication •WirelessHART •FOUNDATION™ fieldbus |
| Long Term Stability | Up to 10-year stability | Up to 10-year stability |
| Warranty | Up to 12-year limited warranty | Up to 12-year limited warranty |
| Diagnostics | •User-writable process temperature sensor limits •Sensor Temperature as an output •Instant Flow Verification |
Advanced HART Diagnostic Suite |
| Line Sizes | 2-in (50 mm) 3-in (80 mm) 4-in (100 mm) 6-in (150 mm) 8-in (200 mm) 10-in (250 mm) 12-in (300 mm) |
2-in (50 mm) 3-in (80 mm) 4-in (100 mm) 6-in (150 mm) 8-in (200 mm) 10-in (250 mm) 12-in (300 mm) |
