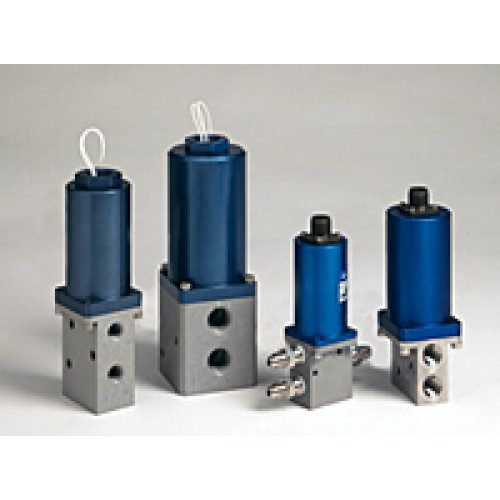

Atkomatic Circle Seal Solenoid Valves SV400 Series Item # SV431A2NO6P33
Features
- Zero Leakage
- Bi-directional flow
- Versatile : 3-way 2-position, 2-way normally closed, or 2-way normally open
- Balanced poppet design
- 303 stainless steel, brass or aluminum construction
- Minimum current required
- Rapid response
- Explosion-proof per MIL-STD-810B
- High pressure
- Direct acting
- Medium flow capacity
| Specifications |
Series |
 |
SV43 |
|
||
Body Material |
|
Aluminum Alloy |
|
||
Operating Pressure |
|
3000 psig |
|
||
Valve Type |
|
2-way, normally open |
|
||
Operating Temperature |
|
-65 to 160 ºF |
|
||
Nominal Coil Voltage & Current |
|
28 VDC |
|
||
Port Size |
|
3/8 in |
|
||
Port Type |
|
Female Pipe |
|
||
Flow Coefficient (Cv) |
|
0.86 |
|
||
Seal Material |
|
Viton® |
|
||
Optional Seal Material |
|
Buna N (standard) Ethylene Propylene Neoprene Viton® A |
|
||
Seat Material |
|
Nylatron® (standard) |
|
||
Optional Seat Material |
|
Nylatron® (standard) Polyimide (Vespel® SP-21) |
|
||
Leakage |
|
Bubble-tight |
|
||
Proof Pressure |
|
9000 psig |
|
||
Fluid Media Type |
|
Gases: air, nitrogen, oxygen, helium (stainless steel only) Liquids: lubricants, water, hydraulic fluids, hydrocarbon fuels |
|
||
Weight |
|
5.2 lbs |
|
||
Options |
|
C - CSA-UL certified NEMA 7 coil housing D - DIN 43650 electrical E - 1/2" pipe thread & 36" connector leads M - Manual Override S - Electrical position indicator |
Item # Body Material Max. Pressure Position of Valve (DE-Energized) Voltage Port Size Port Type Seal Material
SV431A2NO6P33 Aluminum Alloy 3000 psig 2-way, normally open 28 VDC 3/8 in Female Pipe Viton®
SV431A2NO8P33 Aluminum Alloy 3000 psig 2-way, normally open 28 VDC 1/2 in Female Pipe Viton®
SV431A2NC6P33 Aluminum Alloy 3000 psig 2-way, normally closed 28 VDC 3/8 in Female Pipe Viton®
SV431A2NC8P33 Aluminum Alloy 3000 psig 2-way, normally closed 28 VDC 1/2 in Female Pipe Viton®
SV431A32P6P33 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 28 VDC 3/8 in Female Pipe Viton®
SV431A32P8P33 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 28 VDC 1/2 in Female Pipe Viton®
SV431T2NO6P33 303 Stainless Steel 3000 psig 2-way, normally open 28 VDC 3/8 in Female Pipe Viton®
SV431T2NO8P33 303 Stainless Steel 3000 psig 2-way, normally open 28 VDC 1/2 in Female Pipe Viton®
SV431T2NC6P33 303 Stainless Steel 3000 psig 2-way, normally closed 28 VDC 3/8 in Female Pipe Viton®
SV431T2NC8P33 303 Stainless Steel 3000 psig 2-way, normally closed 28 VDC 1/2 in Female Pipe Viton®
SV431T32P6P33 303 Stainless Steel 3000 psig 3-way, 2-position (standard) 28 VDC 3/8 in Female Pipe Viton®
SV431T32P8P33 303 Stainless Steel 3000 psig 3-way, 2-position (standard) 28 VDC 1/2 in Female Pipe Viton®
SV432A2NO6P33 Aluminum Alloy 3000 psig 2-way, normally open 115 VAC 3/8 in Female Pipe Viton®
SV432A2NO8P33 Aluminum Alloy 3000 psig 2-way, normally open 115 VAC 1/2 in Female Pipe Viton®
SV432A2NC6P33 Aluminum Alloy 3000 psig 2-way, normally closed 115 VAC 3/8 in Female Pipe Viton®
SV432A2NC8P33 Aluminum Alloy 3000 psig 2-way, normally closed 115 VAC 1/2 in Female Pipe Viton®
SV432A32P6P33 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 115 VAC 3/8 in Female Pipe Viton®
SV432A32P8P33 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 115 VAC 1/2 in Female Pipe Viton®
SV432T2NO6P33 303 Stainless Steel 3000 psig 2-way, normally open 115 VAC 3/8 in Female Pipe Viton®
SV432T2NO8P33 303 Stainless Steel 3000 psig 2-way, normally open 115 VAC 1/2 in Female Pipe Viton®
SV432T2NC6P33 303 Stainless Steel 3000 psig 2-way, normally closed 115 VAC 3/8 in Female Pipe Viton®
SV432T2NC8P33 303 Stainless Steel 3000 psig 2-way, normally closed 115 VAC 1/2 in Female Pipe Viton®
SV432T32P6P33 303 Stainless Steel 3000 psig 3-way, 2-position (standard) 115 VAC 3/8 in Female Pipe Viton®
SV432T32P8P33 303 Stainless Steel 3000 psig 3-way, 2-position (standard) 115 VAC 1/2 in Female Pipe Viton®
SV433A2NO6P33 Aluminum Alloy 3000 psig 2-way, normally open 220 VAC 3/8 in Female Pipe Viton®
SV433A2NO8P33 Aluminum Alloy 3000 psig 2-way, normally open 220 VAC 1/2 in Female Pipe Viton®
SV433A2NC6P33 Aluminum Alloy 3000 psig 2-way, normally closed 220 VAC 3/8 in Female Pipe Viton®
SV433A2NC8P33 Aluminum Alloy 3000 psig 2-way, normally closed 220 VAC 1/2 in Female Pipe Viton®
SV433A32P6P33 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 220 VAC 3/8 in Female Pipe Viton®
SV433A32P8P33 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 220 VAC 1/2 in Female Pipe Viton®
SV433T2NO6P33 303 Stainless Steel 3000 psig 2-way, normally open 220 VAC 3/8 in Female Pipe Viton®
SV433T2NO8P33 303 Stainless Steel 3000 psig 2-way, normally open 220 VAC 1/2 in Female Pipe Viton®
SV433T2NC6P33 303 Stainless Steel 3000 psig 2-way, normally closed 220 VAC 3/8 in Female Pipe Viton®
SV433T2NC8P33 303 Stainless Steel 3000 psig 2-way, normally closed 220 VAC 1/2 in Female Pipe Viton®
SV433T32P6P33 303 Stainless Steel 3000 psig 3-way, 2-position (standard) 220 VAC 3/8 in Female Pipe Viton®
SV433T32P8P33 303 Stainless Steel 3000 psig 3-way, 2-position (standard) 220 VAC 1/2 in Female Pipe Viton®
SV434A2NO6P33 Aluminum Alloy 3000 psig 2-way, normally open 115 VDC 3/8 in Female Pipe Viton®
SV434A2NO8P33 Aluminum Alloy 3000 psig 2-way, normally open 115 VDC 1/2 in Female Pipe Viton®
SV434A2NC6P33 Aluminum Alloy 3000 psig 2-way, normally closed 115 VDC 3/8 in Female Pipe Viton®
SV434A2NC8P33 Aluminum Alloy 3000 psig 2-way, normally closed 115 VDC 1/2 in Female Pipe Viton®
SV434A32P6P33 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 115 VDC 3/8 in Female Pipe Viton®
SV434A32P8P33 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 115 VDC 1/2 in Female Pipe Viton®
SV434T2NO6P33 303 Stainless Steel 3000 psig 2-way, normally open 115 VDC 3/8 in Female Pipe Viton®
SV434T2NO8P33 303 Stainless Steel 3000 psig 2-way, normally open 115 VDC 1/2 in Female Pipe Viton®
SV434T2NC6P33 303 Stainless Steel 3000 psig 2-way, normally closed 115 VDC 3/8 in Female Pipe Viton®
SV434T2NC8P33 303 Stainless Steel 3000 psig 2-way, normally closed 115 VDC 1/2 in Female Pipe Viton®
SV434T32P6P33 303 Stainless Steel 3000 psig 3-way, 2-position (standard) 115 VDC 3/8 in Female Pipe Viton®
SV434T32P8P33 303 Stainless Steel 3000 psig 3-way, 2-position (standard) 115 VDC 1/2 in Female Pipe Viton®
SV461A2NO6P33 Aluminum Alloy 6000 psig 2-way, normally open 28 VDC 3/8 in Female Pipe Viton®
SV461A2NO8P33 Aluminum Alloy 6000 psig 2-way, normally open 28 VDC 1/2 in Female Pipe Viton®
SV461A2NC6P33 Aluminum Alloy 6000 psig 2-way, normally closed 28 VDC 3/8 in Female Pipe Viton®
SV461A2NC8P33 Aluminum Alloy 6000 psig 2-way, normally closed 28 VDC 1/2 in Female Pipe Viton®
SV461A32P6P33 Aluminum Alloy 6000 psig 3-way, 2-position (standard) 28 VDC 3/8 in Female Pipe Viton®
SV461A32P8P33 Aluminum Alloy 6000 psig 3-way, 2-position (standard) 28 VDC 1/2 in Female Pipe Viton®
SV461T2NO6P33 303 Stainless Steel 6000 psig 2-way, normally open 28 VDC 3/8 in Female Pipe Viton®
SV461T2NO8P33 303 Stainless Steel 6000 psig 2-way, normally open 28 VDC 1/2 in Female Pipe Viton®
SV461T2NC6P33 303 Stainless Steel 6000 psig 2-way, normally closed 28 VDC 3/8 in Female Pipe Viton®
SV461T2NC8P33 303 Stainless Steel 6000 psig 2-way, normally closed 28 VDC 1/2 in Female Pipe Viton®
SV461T32P6P33 303 Stainless Steel 6000 psig 3-way, 2-position (standard) 28 VDC 3/8 in Female Pipe Viton®
SV461T32P8P33 303 Stainless Steel 6000 psig 3-way, 2-position (standard) 28 VDC 1/2 in Female Pipe Viton®
SV462A2NO6P33 Aluminum Alloy 6000 psig 2-way, normally open 115 VAC 3/8 in Female Pipe Viton®
SV462A2NO8P33 Aluminum Alloy 6000 psig 2-way, normally open 115 VAC 1/2 in Female Pipe Viton®
SV462A2NC6P33 Aluminum Alloy 6000 psig 2-way, normally closed 115 VAC 3/8 in Female Pipe Viton®
SV462A2NC8P33 Aluminum Alloy 6000 psig 2-way, normally closed 115 VAC 1/2 in Female Pipe Viton®
SV462A32P6P33 Aluminum Alloy 6000 psig 3-way, 2-position (standard) 115 VAC 3/8 in Female Pipe Viton®
SV462A32P8P33 Aluminum Alloy 6000 psig 3-way, 2-position (standard) 115 VAC 1/2 in Female Pipe Viton®
SV462T2NO6P33 303 Stainless Steel 6000 psig 2-way, normally open 115 VAC 3/8 in Female Pipe Viton®
SV462T2NO8P33 303 Stainless Steel 6000 psig 2-way, normally open 115 VAC 1/2 in Female Pipe Viton®
SV462T2NC6P33 303 Stainless Steel 6000 psig 2-way, normally closed 115 VAC 3/8 in Female Pipe Viton®
SV462T2NC8P33 303 Stainless Steel 6000 psig 2-way, normally closed 115 VAC 1/2 in Female Pipe Viton®
SV462T32P6P33 303 Stainless Steel 6000 psig 3-way, 2-position (standard) 115 VAC 3/8 in Female Pipe Viton®
SV462T32P8P33 303 Stainless Steel 6000 psig 3-way, 2-position (standard) 115 VAC 1/2 in Female Pipe Viton®
SV463A2NO6P33 Aluminum Alloy 6000 psig 2-way, normally open 220 VAC 3/8 in Female Pipe Viton®
SV463A2NO8P33 Aluminum Alloy 6000 psig 2-way, normally open 220 VAC 1/2 in Female Pipe Viton®
SV463A2NC6P33 Aluminum Alloy 6000 psig 2-way, normally closed 220 VAC 3/8 in Female Pipe Viton®
SV463A2NC8P33 Aluminum Alloy 6000 psig 2-way, normally closed 220 VAC 1/2 in Female Pipe Viton®
SV463A32P6P33 Aluminum Alloy 6000 psig 3-way, 2-position (standard) 220 VAC 3/8 in Female Pipe Viton®
SV463A32P8P33 Aluminum Alloy 6000 psig 3-way, 2-position (standard) 220 VAC 1/2 in Female Pipe Viton®
SV463T2NO6P33 303 Stainless Steel 6000 psig 2-way, normally open 220 VAC 3/8 in Female Pipe Viton®
SV463T2NO8P33 303 Stainless Steel 6000 psig 2-way, normally open 220 VAC 1/2 in Female Pipe Viton®
SV463T2NC6P33 303 Stainless Steel 6000 psig 2-way, normally closed 220 VAC 3/8 in Female Pipe Viton®
SV463T2NC8P33 303 Stainless Steel 6000 psig 2-way, normally closed 220 VAC 1/2 in Female Pipe Viton®
SV463T32P6P33 303 Stainless Steel 6000 psig 3-way, 2-position (standard) 220 VAC 3/8 in Female Pipe Viton®
SV463T32P8P33 303 Stainless Steel 6000 psig 3-way, 2-position (standard) 220 VAC 1/2 in Female Pipe Viton®
SV464A2NO6P33 Aluminum Alloy 6000 psig 2-way, normally open 115 VDC 3/8 in Female Pipe Viton®
SV464A2NO8P33 Aluminum Alloy 6000 psig 2-way, normally open 115 VDC 1/2 in Female Pipe Viton®
SV464A2NC6P33 Aluminum Alloy 6000 psig 2-way, normally closed 115 VDC 3/8 in Female Pipe Viton®
SV464A2NC8P33 Aluminum Alloy 6000 psig 2-way, normally closed 115 VDC 1/2 in Female Pipe Viton®
SV464A32P6P33 Aluminum Alloy 6000 psig 3-way, 2-position (standard) 115 VDC 3/8 in Female Pipe Viton®
SV464A32P8P33 Aluminum Alloy 6000 psig 3-way, 2-position (standard) 115 VDC 1/2 in Female Pipe Viton®
SV464T2NO6P33 303 Stainless Steel 6000 psig 2-way, normally open 115 VDC 3/8 in Female Pipe Viton®
SV464T2NO8P33 303 Stainless Steel 6000 psig 2-way, normally open 115 VDC 1/2 in Female Pipe Viton®
SV464T2NC6P33 303 Stainless Steel 6000 psig 2-way, normally closed 115 VDC 3/8 in Female Pipe Viton®
SV464T2NC8P33 303 Stainless Steel 6000 psig 2-way, normally closed 115 VDC 1/2 in Female Pipe Viton®
SV464T32P6P33 303 Stainless Steel 6000 psig 3-way, 2-position (standard) 115 VDC 3/8 in Female Pipe Viton®
SV464T32P8P33 303 Stainless Steel 6000 psig 3-way, 2-position (standard) 115 VDC 1/2 in Female Pipe Viton®
SV431A2NO6P43 Aluminum Alloy 3000 psig 2-way, normally open 28 VDC 3/8 in Female Pipe Buna N (standard)
SV431A2NO8P43 Aluminum Alloy 3000 psig 2-way, normally open 28 VDC 1/2 in Female Pipe Buna N (standard)
SV431A2NC6P43 Aluminum Alloy 3000 psig 2-way, normally closed 28 VDC 3/8 in Female Pipe Buna N (standard)
SV431A2NC8P43 Aluminum Alloy 3000 psig 2-way, normally closed 28 VDC 1/2 in Female Pipe Buna N (standard)
SV431A32P6P43 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 28 VDC 3/8 in Female Pipe Buna N (standard)
SV431A32P8P43 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 28 VDC 1/2 in Female Pipe Buna N (standard)
SV431T2NO6P43 303 Stainless Steel 3000 psig 2-way, normally open 28 VDC 3/8 in Female Pipe Buna N (standard)
SV431T2NO8P43 303 Stainless Steel 3000 psig 2-way, normally open 28 VDC 1/2 in Female Pipe Buna N (standard)
SV431T2NC6P43 303 Stainless Steel 3000 psig 2-way, normally closed 28 VDC 3/8 in Female Pipe Buna N (standard)
SV431T2NC8P43 303 Stainless Steel 3000 psig 2-way, normally closed 28 VDC 1/2 in Female Pipe Buna N (standard)
SV431T32P6P43 303 Stainless Steel 3000 psig 3-way, 2-position (standard) 28 VDC 3/8 in Female Pipe Buna N (standard)
SV431T32P8P43 303 Stainless Steel 3000 psig 3-way, 2-position (standard) 28 VDC 1/2 in Female Pipe Buna N (standard)
SV432A2NO6P43 Aluminum Alloy 3000 psig 2-way, normally open 115 VAC 3/8 in Female Pipe Buna N (standard)
SV432A2NO8P43 Aluminum Alloy 3000 psig 2-way, normally open 115 VAC 1/2 in Female Pipe Buna N (standard)
SV432A2NC6P43 Aluminum Alloy 3000 psig 2-way, normally closed 115 VAC 3/8 in Female Pipe Buna N (standard)
SV432A2NC8P43 Aluminum Alloy 3000 psig 2-way, normally closed 115 VAC 1/2 in Female Pipe Buna N (standard)
SV432A32P6P43 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 115 VAC 3/8 in Female Pipe Buna N (standard)
SV432A32P8P43 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 115 VAC 1/2 in Female Pipe Buna N (standard)
SV432T2NO6P43 303 Stainless Steel 3000 psig 2-way, normally open 115 VAC 3/8 in Female Pipe Buna N (standard)
SV432T2NO8P43 303 Stainless Steel 3000 psig 2-way, normally open 115 VAC 1/2 in Female Pipe Buna N (standard)
SV432T2NC6P43 303 Stainless Steel 3000 psig 2-way, normally closed 115 VAC 3/8 in Female Pipe Buna N (standard)
SV432T2NC8P43 303 Stainless Steel 3000 psig 2-way, normally closed 115 VAC 1/2 in Female Pipe Buna N (standard)
SV432T32P6P43 303 Stainless Steel 3000 psig 3-way, 2-position (standard) 115 VAC 3/8 in Female Pipe Buna N (standard)
SV432T32P8P43 303 Stainless Steel 3000 psig 3-way, 2-position (standard) 115 VAC 1/2 in Female Pipe Buna N (standard)
SV433A2NO6P43 Aluminum Alloy 3000 psig 2-way, normally open 220 VAC 3/8 in Female Pipe Buna N (standard)
SV433A2NO8P43 Aluminum Alloy 3000 psig 2-way, normally open 220 VAC 1/2 in Female Pipe Buna N (standard)
SV433A2NC6P43 Aluminum Alloy 3000 psig 2-way, normally closed 220 VAC 3/8 in Female Pipe Buna N (standard)
SV433A2NC8P43 Aluminum Alloy 3000 psig 2-way, normally closed 220 VAC 1/2 in Female Pipe Buna N (standard)
SV433A32P6P43 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 220 VAC 3/8 in Female Pipe Buna N (standard)
SV433A32P8P43 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 220 VAC 1/2 in Female Pipe Buna N (standard)
SV433T2NO6P43 303 Stainless Steel 3000 psig 2-way, normally open 220 VAC 3/8 in Female Pipe Buna N (standard)
SV433T2NO8P43 303 Stainless Steel 3000 psig 2-way, normally open 220 VAC 1/2 in Female Pipe Buna N (standard)
SV433T2NC6P43 303 Stainless Steel 3000 psig 2-way, normally closed 220 VAC 3/8 in Female Pipe Buna N (standard)
SV433T2NC8P43 303 Stainless Steel 3000 psig 2-way, normally closed 220 VAC 1/2 in Female Pipe Buna N (standard)
SV433T32P6P43 303 Stainless Steel 3000 psig 3-way, 2-position (standard) 220 VAC 3/8 in Female Pipe Buna N (standard)
SV433T32P8P43 303 Stainless Steel 3000 psig 3-way, 2-position (standard) 220 VAC 1/2 in Female Pipe Buna N (standard)
SV434A2NO6P43 Aluminum Alloy 3000 psig 2-way, normally open 115 VDC 3/8 in Female Pipe Buna N (standard)
SV434A2NO8P43 Aluminum Alloy 3000 psig 2-way, normally open 115 VDC 1/2 in Female Pipe Buna N (standard)
SV434A2NC6P43 Aluminum Alloy 3000 psig 2-way, normally closed 115 VDC 3/8 in Female Pipe Buna N (standard)
SV434A2NC8P43 Aluminum Alloy 3000 psig 2-way, normally closed 115 VDC 1/2 in Female Pipe Buna N (standard)
SV434A32P6P43 Aluminum Alloy 3000 psig 3-way, 2-position (standard) 115 VDC 3/8 in Female Pipe Buna N (standard)
SV434A32P8P43 Aluminum Alloy
