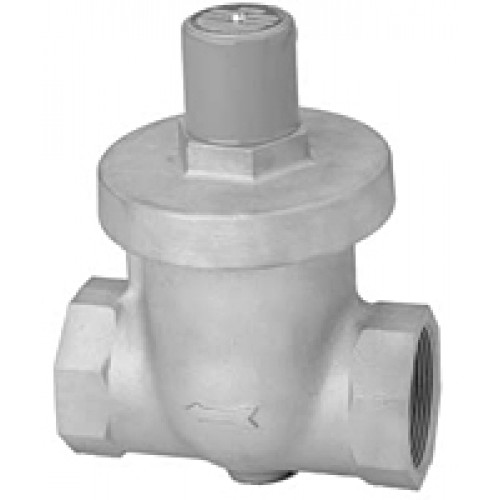

Atkomatic Solenoid Valves JJ Series Solenoid Valves Item # JJ200-30BP

Bronze, Pilot-piston, Pressure 5 to 250 psig (0.4 to 17 bar) General Purpose Air, Water, and Light Oil (150 SSU max.) Value.

Features

Pressures to 250 psig (17 bar)
Fluid temperatures from -65° F to +180° F (-54° C to +82° C)
Pipe sizes from 1/4" through 2" (British BSPT ports available)
Full ported valves: Cv from 1.4 to 46
Pilot operated: require a minimum pressure differential of 5 psig
Bronze or brass valve material
Buna N pilot seat, piston seat, and body o-ring seals
Class B and class H coils are available
Coil housing - NEMA 1
Treated 416 stainless steel plunger material for increased corrosion resistance

Specifications

Series		JJ

Body Material		Bronze

Position of Valve (DE-Energized)		Normally Closed

Connection Size		1/4 in

Connection Type		Female NPT

Fluid Media Type		General Purpose

Operating Pressure¹		5 to 250 psig 0.4 to 17 bar

Temperature Range		-54 to 82 ºC -65 to 180 ºF

Main Seat Orifice		.5 in

Cv		1.40

Voltage		115 - 60 VAC

Coil Insulation Rating		Class B (155° C)

Dim. X		4 3/4 in

Dim. Y		3 7/8 in

Dim. Z		2.6875 in

Item #   Body Material   Position   Size   Operating Pressure   Temperature   Voltage
JJ200-30BP   Bronze   Normally Closed   1/4 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ200-30HP   Bronze   Normally Closed   1/4 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ200-01BP   Bronze   Normally Closed   1/4 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ200-01HP   Bronze   Normally Closed   1/4 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ200-02BP   Bronze   Normally Closed   1/4 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ200-02HP   Bronze   Normally Closed   1/4 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ300-30BP   Bronze   Normally Closed   3/8 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ300-30HP   Bronze   Normally Closed   3/8 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ300-01BP   Bronze   Normally Closed   3/8 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ300-01HP   Bronze   Normally Closed   3/8 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ300-02BP   Bronze   Normally Closed   3/8 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ300-02HP   Bronze   Normally Closed   3/8 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ400-30BP   Bronze   Normally Closed   1/2 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ400-30HP   Bronze   Normally Closed   1/2 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ400-01BP   Bronze   Normally Closed   1/2 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ400-01HP   Bronze   Normally Closed   1/2 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ400-02BP   Bronze   Normally Closed   1/2 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ400-02HP   Bronze   Normally Closed   1/2 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ500-30BP   Bronze   Normally Closed   3/4 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ500-30HP   Bronze   Normally Closed   3/4 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ500-01BP   Bronze   Normally Closed   3/4 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ500-01HP   Bronze   Normally Closed   3/4 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ500-02BP   Bronze   Normally Closed   3/4 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ500-02HP   Bronze   Normally Closed   3/4 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ600-30BP   Bronze   Normally Closed   1 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ600-30HP   Bronze   Normally Closed   1 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ600-01BP   Bronze   Normally Closed   1 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ600-01HP   Bronze   Normally Closed   1 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ600-02BP   Bronze   Normally Closed   1 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ600-02HP   Bronze   Normally Closed   1 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ700-30BP   Bronze   Normally Closed   1 1/4 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ700-30HP   Bronze   Normally Closed   1 1/4 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ700-01BP   Bronze   Normally Closed   1 1/4 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ700-01HP   Bronze   Normally Closed   1 1/4 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ700-02BP   Bronze   Normally Closed   1 1/4 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ700-02HP   Bronze   Normally Closed   1 1/4 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ800-30BP   Bronze   Normally Closed   1 1/2 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ800-30HP   Bronze   Normally Closed   1 1/2 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ800-01BP   Bronze   Normally Closed   1 1/2 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ800-01HP   Bronze   Normally Closed   1 1/2 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ800-02BP   Bronze   Normally Closed   1 1/2 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ800-02HP   Bronze   Normally Closed   1 1/2 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ900-30BP   Bronze   Normally Closed   2 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ900-30HP   Bronze   Normally Closed   2 in   5 to 250 psig   -54 to 82 ºC   115 - 60 VAC
               0.4 to 17 bar   -65 to 180 ºF
JJ900-01BP   Bronze   Normally Closed   2 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ900-01HP   Bronze   Normally Closed   2 in   5 to 250 psig   -54 to 82 ºC   12 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ900-02BP   Bronze   Normally Closed   2 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
JJ900-02HP   Bronze   Normally Closed   2 in   5 to 250 psig   -54 to 82 ºC   24 VDC
               0.4 to 17 bar   -65 to 180 ºF
