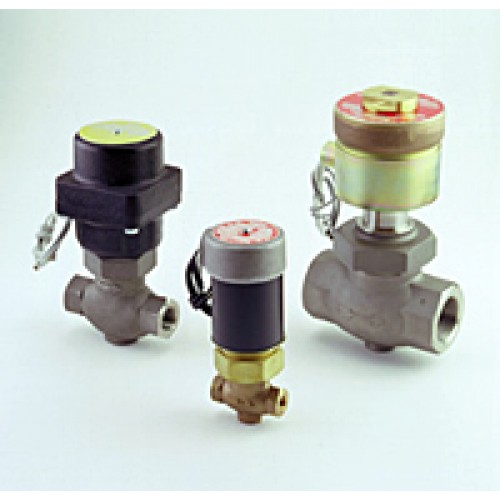

Atkomatic Solenoid Valves 15800 Series Solenoid Valves Item # 15800-300HPDAA4S
Stainless Steel, Semi-direct Lift, Pressure 0 to 1500 psig (104 bar) Medium Pressure Valve Configurable for Variety of Fluid Applications
Features
- Stainless steel construction on all wetted parts: 316 for barstock parts and CF8M for cast parts.
- Plunger material is 416 stainless that is treated for increased corrosion resistance
- Semi-direct lift action for operation down to zero pressure differential
- Normally closed operation
- Operation up to 1500 psi (104 bar)
- Media temperatures from - 423º F to +500º F (-253º C to +260º C)
- Will handle fluids with viscosity up to 150 SUS
- Suitable for use with wide variety of fluid including: air, gasses, liquids, hydraulic fluids, steam, cryogenic fluids, and corrosive fluids
- Optional pilot and piston seat materials of Teflon®, PCTFE, Buna N, Viton®, EPR, or 316 stainless steel depending on fluid type and pressure
- Body seal materials of Teflon®, Viton®, Buna N, or EPR
- Pipe sizes from 1/4" through 1" NPT
- British BSPT ports are available
- Full ported valves: Cv from 1.1 through 12.5
- Removable 316 stainless steel body inserts (stainless steel trim)
- Class H coils standard
- Coil housings available in NEMA 1 (standard), NEMA 4 (waterproof), NEMA 7 (explosion-proof for hazardous locations), and combination NEMA 4 & 7
- Manual opening device is available as an option
- Valve position indicator option is available
| Specifications |
Series |
 |
15800 |
|
||
Body Material |
|
Stainless Steel |
|
||
Seat & Seal Material |
|
Teflon® |
|
||
Position of Valve (DE-Energized) |
|
Normally Closed |
|
||
Connection Size |
|
1/4 in |
|
||
Connection Type |
|
Female NPT |
|
||
Fluid Media Type |
|
Steam |
|
||
Operating Pressure |
|
0 to 200 psig 0 to 14 bar |
|
||
Temperature Range |
|
-423 to 500 ºF -253 to 260 ºC |
|
||
Main Seat Orifice |
|
.375 in |
|
||
Cv |
|
1.10 |
|
||
Voltage |
|
115 VAC |
|
||
Coil Insulation Rating |
|
Class H (180° C) |
|
||
Coil Type |
|
Single Wound Molded |
|
||
Coil Housing |
|
Standard |
|
||
Dim. X |
|
7.375 in |
|
||
Dim. Y |
|
6.5 in |
|
||
Dim. Z |
|
3 in |
Item # Body Material Seat & Seal Material Size Fluid Media Type Operating Pressure Temperature Range
15800-300HPDAA4S Stainless Steel Teflon® 1/4 in Steam 0 to 200 psig -423 to 500 ºF
0 to 14 bar -253 to 260 ºC
15800-300HPDAA5S Stainless Steel Teflon® 1/4 in Cryogenic 0 to 200 psig -423 to 500 ºF
0 to 14 bar -253 to 260 ºC
15800-300HPLAA1S Stainless Steel Teflon® 1/4 in Gas 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15800-300HPLAA2S Stainless Steel Teflon® 1/4 in Liquid up to 40 SUS 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15800-300HPLAA3S Stainless Steel Teflon® 1/4 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15800-300HPLBB1S Stainless Steel Buna N 1/4 in Gas 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15800-300HPLBB2S Stainless Steel Buna N 1/4 in Liquid up to 40 SUS 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15800-300HPLBB3S Stainless Steel Buna N 1/4 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15800-300HPLCC1S Stainless Steel Viton® 1/4 in Gas 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15800-300HPLCC2S Stainless Steel Viton® 1/4 in Liquid up to 40 SUS 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15800-300HPLCC3S Stainless Steel Viton® 1/4 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15800-300HPLDD1S Stainless Steel EPR 1/4 in Gas 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
15800-300HPLDD2S Stainless Steel EPR 1/4 in Liquid up to 40 SUS 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
15800-300HPLDD3S Stainless Steel EPR 1/4 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
15810-300HPDAA4S Stainless Steel Teflon® 3/8 in Steam 0 to 200 psig -423 to 500 ºF
0 to 14 bar -253 to 260 ºC
15810-300HPDAA5S Stainless Steel Teflon® 3/8 in Cryogenic 0 to 200 psig -423 to 500 ºF
0 to 14 bar -253 to 260 ºC
15810-300HPLAA1S Stainless Steel Teflon® 3/8 in Gas 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15810-300HPLAA2S Stainless Steel Teflon® 3/8 in Liquid up to 40 SUS 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15810-300HPLAA3S Stainless Steel Teflon® 3/8 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15810-300HPLBB1S Stainless Steel Buna N 3/8 in Gas 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15810-300HPLBB2S Stainless Steel Buna N 3/8 in Liquid up to 40 SUS 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15810-300HPLBB3S Stainless Steel Buna N 3/8 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15810-300HPLCC1S Stainless Steel Viton® 3/8 in Gas 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15810-300HPLCC2S Stainless Steel Viton® 3/8 in Liquid up to 40 SUS 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15810-300HPLCC3S Stainless Steel Viton® 3/8 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15810-300HPLDD1S Stainless Steel EPR 3/8 in Gas 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
15810-300HPLDD2S Stainless Steel EPR 3/8 in Liquid up to 40 SUS 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
15810-300HPLDD3S Stainless Steel EPR 3/8 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
15820-300HPDAA4S Stainless Steel Teflon® 1/2 in Steam 0 to 200 psig -423 to 500 ºF
0 to 14 bar -253 to 260 ºC
15820-300HPDAA5S Stainless Steel Teflon® 1/2 in Cryogenic 0 to 200 psig -423 to 500 ºF
0 to 14 bar -253 to 260 ºC
15820-300HPLAA1S Stainless Steel Teflon® 1/2 in Gas 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15820-300HPLAA2S Stainless Steel Teflon® 1/2 in Liquid up to 40 SUS 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15820-300HPLAA3S Stainless Steel Teflon® 1/2 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15820-300HPLBB1S Stainless Steel Buna N 1/2 in Gas 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15820-300HPLBB2S Stainless Steel Buna N 1/2 in Liquid up to 40 SUS 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15820-300HPLBB3S Stainless Steel Buna N 1/2 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15820-300HPLCC1S Stainless Steel Viton® 1/2 in Gas 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15820-300HPLCC2S Stainless Steel Viton® 1/2 in Liquid up to 40 SUS 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15820-300HPLCC3S Stainless Steel Viton® 1/2 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15820-300HPLDD1S Stainless Steel EPR 1/2 in Gas 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
15820-300HPLDD2S Stainless Steel EPR 1/2 in Liquid up to 40 SUS 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
15820-300HPLDD3S Stainless Steel EPR 1/2 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
15830-300HPDAA4S Stainless Steel Teflon® 3/4 in Steam 0 to 200 psig -423 to 500 ºF
0 to 14 bar -253 to 260 ºC
15830-300HPDAA5S Stainless Steel Teflon® 3/4 in Cryogenic 0 to 200 psig -423 to 500 ºF
0 to 14 bar -253 to 260 ºC
15830-300HPLAA1S Stainless Steel Teflon® 3/4 in Gas 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15830-300HPLAA2S Stainless Steel Teflon® 3/4 in Liquid up to 40 SUS 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15830-300HPLAA3S Stainless Steel Teflon® 3/4 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15830-300HPLBB1S Stainless Steel Buna N 3/4 in Gas 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15830-300HPLBB2S Stainless Steel Buna N 3/4 in Liquid up to 40 SUS 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15830-300HPLBB3S Stainless Steel Buna N 3/4 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15830-300HPLCC1S Stainless Steel Viton® 3/4 in Gas 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15830-300HPLCC2S Stainless Steel Viton® 3/4 in Liquid up to 40 SUS 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15830-300HPLCC3S Stainless Steel Viton® 3/4 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15830-300HPLDD1S Stainless Steel EPR 3/4 in Gas 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
15830-300HPLDD2S Stainless Steel EPR 3/4 in Liquid up to 40 SUS 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
15830-300HPLDD3S Stainless Steel EPR 3/4 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
15840-300HPDAA4S Stainless Steel Teflon® 1 in Steam 0 to 200 psig -423 to 500 ºF
0 to 14 bar -253 to 260 ºC
15840-300HPDAA5S Stainless Steel Teflon® 1 in Cryogenic 0 to 200 psig -423 to 500 ºF
0 to 14 bar -253 to 260 ºC
15840-300HPLAA1S Stainless Steel Teflon® 1 in Gas 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15840-300HPLAA2S Stainless Steel Teflon® 1 in Liquid up to 40 SUS 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15840-300HPLAA3S Stainless Steel Teflon® 1 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -423 to 500 ºF
0 to 104 bar -253 to 260 ºC
15840-300HPLBB1S Stainless Steel Buna N 1 in Gas 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15840-300HPLBB2S Stainless Steel Buna N 1 in Liquid up to 40 SUS 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15840-300HPLBB3S Stainless Steel Buna N 1 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -65 to 275 ºF
0 to 104 bar -54 to 135 ºC
15840-300HPLCC1S Stainless Steel Viton® 1 in Gas 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15840-300HPLCC2S Stainless Steel Viton® 1 in Liquid up to 40 SUS 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15840-300HPLCC3S Stainless Steel Viton® 1 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -15 to 400 ºF
0 to 104 bar -29 to 204 ºC
15840-300HPLDD1S Stainless Steel EPR 1 in Gas 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
15840-300HPLDD2S Stainless Steel EPR 1 in Liquid up to 40 SUS 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
15840-300HPLDD3S Stainless Steel EPR 1 in Liquid from 41 SUS to 150 SUS 0 to 1500 psig -65 to 300 ºF
0 to 104 bar -54 to 149 ºC
