Feature
Emergency valves that are set by introducing signal air pressure and pushing a palm button.
In an emergency case, when signal air pressure disappears, the valve changes its operating position by spring action. When signal air pressure is led again, the valve maintains its operating position unless the palm button is pushed.
Standard specification
- FLUID
- CLEAN AIR
- FLUID TEMPERATURE
- -20～60℃
- WORKING PRESSURE
- 0～0.99MPa
- SIGNAL AIR PRESSURE RANGE
- 0.06～0.14MPa
- Cv. FLOW FACTOR
- 0.75
Product Image

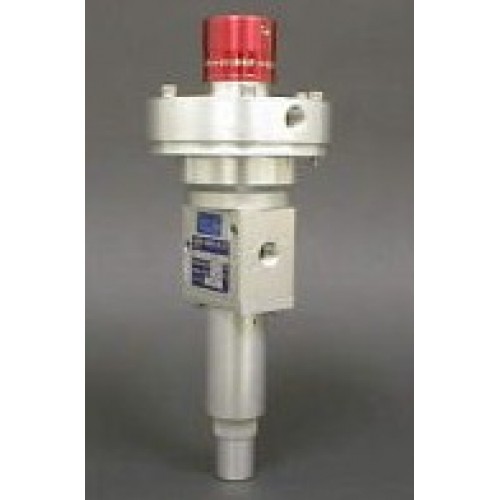

BZ11RC , RD AIR-OPERATED VALVE
BZ11RG AIR-OPERATED VALVE
DESCRIPTION OF OPERATION
BZ11RC
BZ11RD
BZ11RG
