Feature
As pilot pressure is well balanced with main pressure, the valves operate accurately.
Standard specification
- FLUID
- CLEAN AIR
- FLUID TEMPERATURE
- -20 ～ 60℃
- WORKING PRESSURE
- 0.1 ～ 0.99MPa
- PILOT PRESSURE
- 0.6MPa or over（WORKING PRESSURE ）
- WORKING PRESSURE : 0.1MPa
- 0.08MPa or over
- WORKING PRESSURE : 0.3MPa
- 0.19MPa or over
- WORKING PRESSURE : 0.5MPa
- 0.3MPa or over
- WORKING PRESSURE : 0.7MPa
- 0.43MPa or over
- WORKING PRESSURE : 0.99MPa
- 0.6MPa or over
- Cv. FLOW FACTOR
- 0.75
- WEIGHT
- 0.53Kg

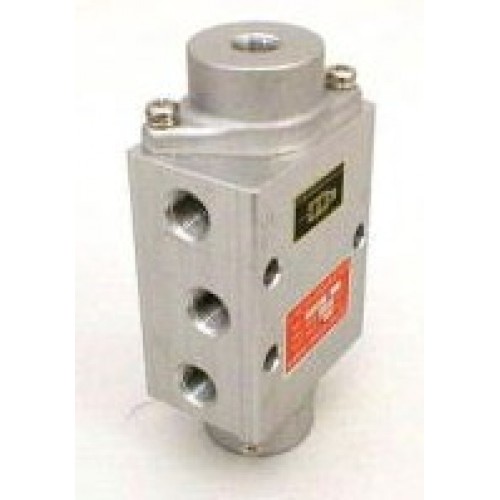

Product Image
P15G AIR-OPERATED TYPE
| P15G-8～10 | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 60 | 121 |
| 10 | 60 | 121 |
DESCRIPTION OF OPERATION
