Feature
A kind of safety valve capable of preventing malfunctioning.
Being a semi-automatic type, the valve does not operate freely like an ordinary solenoid valve by turning on or off of the power.
Packed type
Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.
Easy to operate manually.
You can just press the palm ratchet button.
We offer two types of operation and with the operation when the power during a power outage.
Standard specification
- FLUID
- CLEAN AIR
- FLUID TEMPERATURE
- -20 ～ 60℃
- AMBIENT TEMPERATURE
- -20 ～ 60℃
- DUTY CYCLE
- 100% CONTINUOUSLY RATED
- OPERATING VOLTAGE RANGE
- +10，-15％
- WORKING PRESSURE
- 0 ～ 0.99MPa
- Cv. FLOW FACTOR
- 0.58
- ELECTRICAL SPECIFICATIONS
- See below
ELECTRICAL SPECIFICATIONS
| AC | DC | |||
|---|---|---|---|---|
| V/Hz | INRUSH A | HOLDING A | V | A |
| COIL INSULATION CLASS : B | ||||
| 100/50 | 2.8 | 0.50 | 24 | 0.91 |
| 100/60 | 3.1 | 0.56 | 48 | 0.53 |
| 110/60 | 2.6 | 0.46 | 100 | 0.24 |
| 200/50 | 1.4 | 0.25 | 110 | 0.26 |
| 200/60 | 1.6 | 0.28 | 125 | 0.20 |
| 220/60 | 1.3 | 0.23 | ||

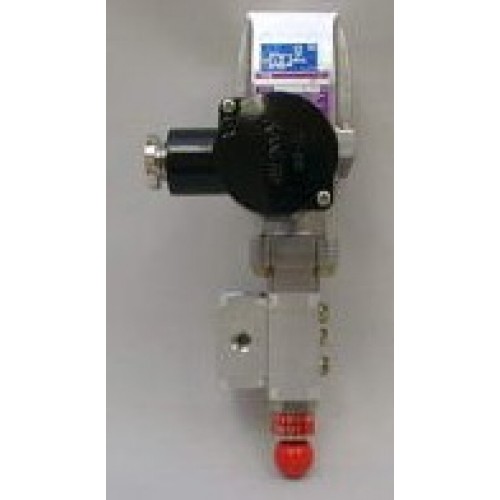

Product Image
M51 AC GENERAL PURPOSE TYPE
| M51-8 ～ 10 AC GENERAL PURPOSE TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 40 | 274 |
| 10 | 40 | 274 |
M51 DC GENERAL PURPOSE TYPE
| M51-8 ～ 10 DC GENERAL PURPOSE TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 40 | 294 |
| 10 | 40 | 294 |
M51 AC EXPLOSION-PROOF TYPE
| M51-8 ～ 10 AC EXPLOSION-PROOF TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 40 | 308 |
| 10 | 40 | 308 |
M51 DC EXPLOSION-PROOF TYPE
| M51-8 ～ 10 DC EXPLOSION-PROOF TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 40 | 312 |
| 10 | 40 | 312 |
