Feature
Packed type
Free from any fear of burnout or insulation degradation as the coil and movable core do not come into contact with fluid.
Safe explosion-proof construction.
Explosion-proof type valves certified by the Ministry of Labor.
Highly durable.
A mechanical life of five million operations or more is expectable.
Manual check is possible.
Manual operation is possible. This mode can be used for operation check or switching in case of emergency.
Standard specification
- FLUID
- CLEAN AIR
- FLUID TEMPERATURE
- -20 ～ 60℃
- AMBIENT TEMPERATURE
- -20 ～ 60℃
- DUTY CYCLE
- 100% CONTINUOUSLY RATED
- OPERATING VOLTAGE RANGE
- +10，-15％
- WORKING PRESSURE
- 0 ～ 0.99MPa
- Cv. FLOW FACTOR
- 0.58
- ELECTRICAL SPECIFICATIONS
- See below
ELECTRICAL SPECIFICATIONS
| AC | DC | |||
|---|---|---|---|---|
| V/Hz | INRUSH A | HOLDING A | V | A |
| GENERAL PURPOSE TYPE 1, EXPLOSION-PROOF TYPE E1 | COIL INSULATION CLASS : B | |||
| 100/50 | 2.8 | 0.50 | 24 | 0.91 |
| 100/60 | 3.1 | 0.56 | 48 | 0.53 |
| 110/60 | 2.6 | 0.46 | 100 | 0.24 |
| 200/50 | 1.4 | 0.25 | 110 | 0.26 |
| 200/60 | 1.6 | 0.28 | 125 | 0.20 |
| 220/60 | 1.3 | 0.23 | ||

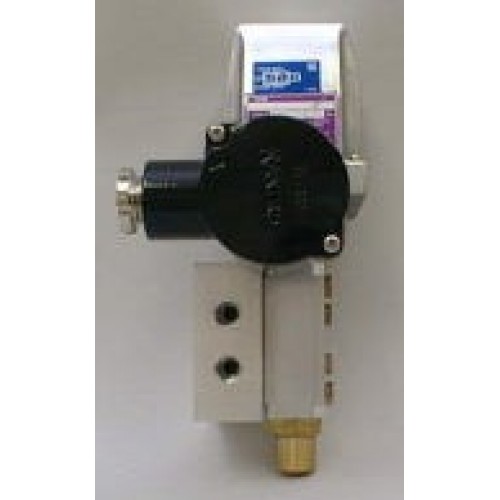

Product Image
M80G AC GENERAL PURPOSE TYPE
| M80G-8 ～ 10 AC GENERAL PURPOSE TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 70 | 222 |
| 10 | 50 | 222 |
M80G DC GENERAL PURPOSE TYPE
| M80G-8 ～ 10 DC GENERAL PURPOSE TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 70 | 242 |
| 10 | 70 | 242 |
M80G AC EXPLOSION-PROOF TYPE
| M80G-8 ～ 10 AC EXPLOSION-PROOF TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 70 | 256 |
| 10 | 50 | 256 |
M80G DC EXPLOSION-PROOF TYPE
| M80G-8 ～ 10 DC EXPLOSION-PROOF TYPE | ||
|---|---|---|
| NOMINAL DIAMETER | MOUNTING LENGTH | H |
| 8 | 70 | 260 |
| 10 | 70 | 260 |
