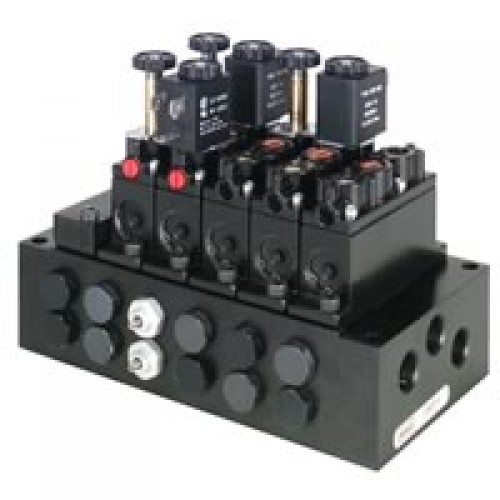

Ingersoll Rand Pneumatic Valves Alpha Series Alpha (Thin) Manifold

Features

• "Thin" Manifold Valves

  Thin, 1" width means more valves in less space. Faster assembly than stacking style valves. 2, 4, 6, 8, and 10 station manifolds are available. Use optional blanking plates for odd-numbered stations. 1/8" and 1/4" (NPT) models, with 3/8" supply or exhaust ports. Speed Controls install directly into manifold, cutting set-up time.

Versatile Design

• Alpha can be ordered as a two-position or three-position valve
• 5-year Warranty.
• Valve Body, End Plate and Manifold material is zinc.

Superb Performance

• ALPHAs bonded, precision ground spool resists wear & provides excellent shift response.
• Large air passages result in high flow characteristics. Listings detail Cv factor and maximum flow rates.

Numerous Control Options

• Control the valve one of five ways: Solenoid/Spring, Solenoid/Solenoid, Solenoid/Pilot, Pilot/Spring, or Pilot/Pilot
• Optional external solenoid supply allows operation for vacuum service and low pressure applications. (Kit # 119306)

VALVE MODEL   A  SPOOL KIT    “B” COVER PLATE KIT

A2XXBD           118597-12         114776

A2XXPS           118597-2          116538

A2XXPD           118597-12         116539

A2XXSS-XXX-X     118597-2         119238

A2XXSD-XXX-X     118597-12        119236

A2XXSS-XXX-L     118597-2          119241

A2XXSD-XXX-L     118597-12         119239

A2XXSP-XXX-X     118597-12         119237

A2XXSP-XXX-L     118597-12         119240

A3XXPD           118597-3           116539

A3XXSD-XXX-X    118597-3           119236

A3XXSD-XXX-L    118597-3           119239

A3XXSP-XXX-X    118597-3           119237

A3XXSP-XXX-L    118597-3           119240

A4XXPS           118598-4          116538

A4XXPD           118598-14         116539

A4XXSS-XXX-X    118598-4          119238

A4XXSD-XXX-X    118598-14         119236

A4XXSS-XXX-L    118598-4           119241

A4XXSD-XXX-L    118598-14         119239

A4XXSP-XXX-X    118598-14         119237

A4XXSP-XXX-L    118598-14         119240

A7XXPD          118597-7           116539

A7XXSD-XXX-X    118597-7          119236

A7XXSD-XXX-L    118597-7          119239

A7XXSP-XXX-X    118597-7          119237

A7XXSP-XXX-L    118597-7          119240

A8XXPD          118598-8          116539

A8XXSD-XXX-X    118598-8         119236

A8XXSD-XXX-L    118598-8         119239

A8XXSP-XXX-X    118598-8         119237

A8XXSP-XXX-L    118598-8         119240

A9XXPD          118598-9         116539

A9XXSD-XXX-X   118598-9         119236

A9XXSD-XXX-L   118598-9         119239

A9XXSP-XXX-X   118598-9         119237

A9XXSP-XXX-L   118598-9         119240

MODEL NUMBER   PORT SIZE    “C” VALVE BODY

AX11XX-           1/8 NPTF        116205-1

AX12XX-           1/4 NPTF        116205-2

AX13XX-           3/8 NPTF        119644

AX21XX-           1/8 NPTF        116206-1

AX22XX-           1/4 NPTF        116206-2

AX39XX-            NONE          115030

AX49XX-            NONE          115081
