Ingersoll Rand Pneumatic Valves 50 / E / K / H Series H Series

Features

• H-Series Valves feature high-flow and fast response.
• Numerous Styles and Options.
• 3-Way and 4-Way 2-position Poppet Valves.
• Several Actuator Styles.
• Override is not available with "H" Series Valves.
• Electric

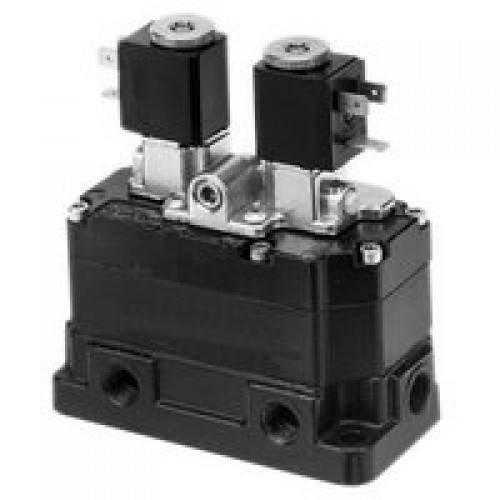

  3-Way Single Solenoid, 4-Way Solenoid/ Internal Pilot, 4-Way Double Solenoid

• Pneumatic

  3-Way Pilot/Spring, 4-Way Double Pilot, 4-Way Manual Bleed, 4-Way Pilot/Internal Pilot

Comprehensive Valve Design

• 1. Durable Valve Body

  Valve body is die-cast Zinc, with a zinc chromate coating for added corrosion resistance in harsh environments.

• 2. Superior Performance

  Large, unrestricted air passages produce high flow and fast response times.

• 3. Superior Design

  3-Way valves feature a single poppet. 4-Way valves have two simultaneously driven poppets to provide the 4-way function.
