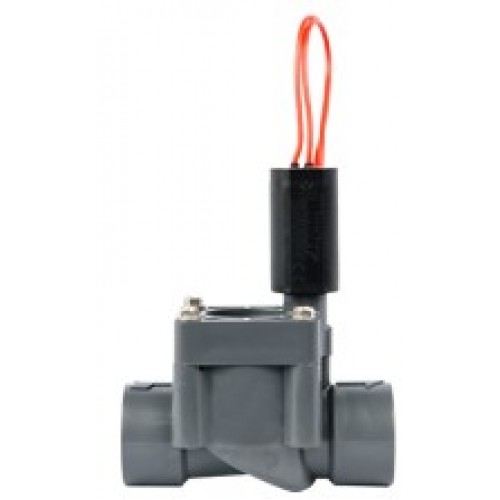

Hunter solenoid valve SRV series SRV-100G
The SRV was designed to offer dependable performance and affordable pricing for residential applications. Features of the SRV include a durable high-grade PVC globe body plus a rugged diaphragm custom-crafted to withstand the challenge of vigorous day-to-day use. In addition, the SRV boasts a diaphragm support to prevent stress failure, an internal manual bleed to keep the valve box dry, and the heavy-duty Hunter solenoid.
Feature
-
Application: Residential
-
Size: 1”
-
Double-beaded diaphragm seal design for superior leak-free performance
-
Compatible with Hunter's DC Latching solenoids for use with battery operated controllers
-
Captive bonnet bolts provide hassle-free valve maintenance
-
Low flow capability allows use of Hunter’s micro-irrigation products
-
Encapsulated 24 VAC solenoid with captive plunger for hassle-free service
-
Temperature rating: 125° F
-
Warranty period: 2 years
Size:
Inlet Diameter: 1"
Height: 5"
Length: 4½"
Width: 2½"
Operating Specifications
- Flow rate: 1 to 40 GPM
- Recommended pressure range: 20 to 150 PSI
Solenoid Specifications
- 24 VAC solenoid
- 350 mA inrush, 190 mA holding, 60 cycles
- 370 mA inrush, 210 mA holding, 50 cycles
User Installed Options
- Solenoid conduit cover (P/N 464322)
- DC latching solenoid (P/N 458200)
- Accu-Sync pressure regulator
| SRV Pressure Loss in PSI | |
|---|---|
| Flow | 1" |
| GPM | Globe |
| 1 | 1.1 |
| 5 | 1.9 |
| 10 | 1.9 |
| 15 | 1.6 |
| 20 | 5.0 |
| 30 | 9.1 |
| 35 | 16 |
| 40 | 20 |
