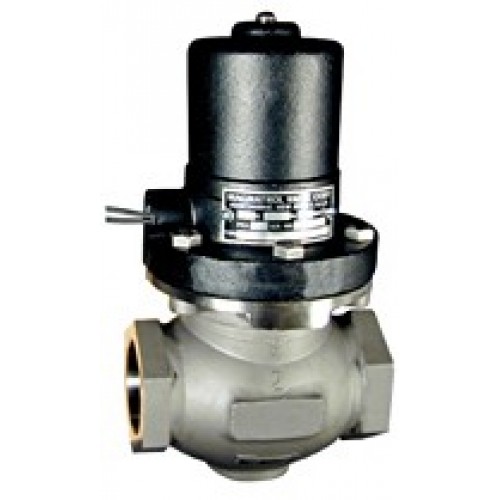

Magnatrol standard STAINLESS STEEL SOLENOID VALVE TYPE "W" FULL PORT

OPERATION:
Valve opens when energized and closes when de-energized. When the coil is energized the pilot valve opens, relieving the pressure above the piston, which is then lifted from its seat by the plunger. Upon de-energizing the coil, a spring closes the pilot valve and opens a bleed passageway to permit pressure to build above the piston and seat it.

CONSTRUCTION:
(*Wetted parts - No Copper Bearing Alloys in contact with fluid)
*Valve Body - 304 Stainless Steel Globe Pattern - NPT ends
*Piston - 303 Stainless Steel
Coil Enclosure - Malleable or Cast Iron,1/2” NPS conduit conn.
*Plunger - 430 Stainless Steel
*Pilot Valve - 303 Stainless Steel
*Bonnet Tube - 304 Stainless Steel
*Spring - Inconel
*Body Seal - Non Asbestos Gasket
*Orifice Seal - Glass Filled Teflon
*AC Shading Coil - Silver
*Stem Pin - Inconel
Coil - Encapsulated Class H, 18” leads

MAX. FLUID TEMP.：400°F
MAX. STATIC PRESSURE：200 PSI

APPLICATION:
To control the flow of STEAM. Steam must be free of sediment. Valve operates from zero to maximum differential pressure indicated in table. Valve must be mounted in horizontal pipe with solenoid enclosure vertical and on top.

Pipe	Max.	Type No.	Watts	Amps	Amps Inrush	Watts	Ship
Size	Diff.		AC	Hold	120-60	DC	Wt.
Inches	PSI			120-60			Lbs.
1/2“	90	14W22	25	0.4	1.2	18	7
	140	114W42	40	0.6	1.8	28
	180	129W42	65	1.2	3.6	33	10
3/4”	50	14W23	25	0.4	1.3	18	8
	110	114W43	40	0.6	2	28
	180	129W43	65	1.2	3.9	33	11
1“	25	16W14	25	0.4	1.5	18	10
	50	116W24	40	0.6	2.3	28
	90	116W44
	180	131W44	65	1.2	4.2	33	13
1 1/2”	25	35W16	45	0.8	3.2	23	17
	50	35W26
	90	135W46	65	1.2	4.8	33
	180	141W46	85	2	10	45	21
2“	25	36W17	45	0.8	3.5	23	27
	50	36W27
	115	42W47	60	1.2	7.4	35	32
	180	142W47	85	2	11	45
3”	25	44W19F1	60	1.2	8.8	35	68
	50	44W29F1
	100	44W49F1
	150	144W49F1	85	2	13	45
