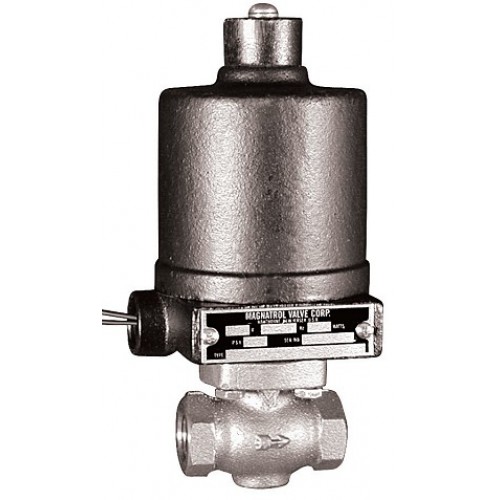

Magnatrol standard STAINLESS STEEL SOLENOID VALVES BULLETIN 3006-JR

MAX. FLUID TEMP.：400!a
MAX. STATIC PRESSURE：300 PSI
DIRECT ACTING - ORIFICE SIZES 1/8!± TO 3/8
NO DIFFERENTIAL PRESSURE REQUIRED TO OPEN

OPERATION:
Valve closes when energized and opens when de-energized.  In this direct acting valve, when the
coil is energized, the stem is pressed into its conical seat by the plunger.

CONSTRUCTION:  (*Wetted parts)
*Valve Body - 304 Stainless Steel Globe Pattern - NPT ends
  Coil Enclosure - Malleable Iron,1/2 !± NPT conduit conn
*Plunger - 430 Stainless Steel
*Poppet - 304 Stainless Steel
*Stem - 303 Stainless Steel
*Bonnet Tube - 304 Stainless Steel
*Spring - Inconel
*Body Seal - Non Asbestos Gasket
*Oriice Seal - Metal to Metal
*AC Shading Coil - Silver
*Stem Pin - Inconel Coil - Encapsulated Class H, 18!± lead
APPLICATION:
To control the low of Steam, Hot Liquids, Hot Gases,Cryogenics and any other luids not reactive with construction materials and free of sidement. Cryogenic luids include liquid oxygen (-297 F), liquid argon (-303 F)and liquid nitrogen (-320 F).  Valve operates from zero to
FOR OPTIONS AND maximum diferential pressure indicated in table.  Valve
 ACCESSORIES must be mounted in horizontal pipe with solenoid enclosure

Type No.
10JR21
10JR51
10JR61
25JR21
25JR51
25JR61
10JR22
10JR52
10JR62
25JR22
25JR52
25JR62
