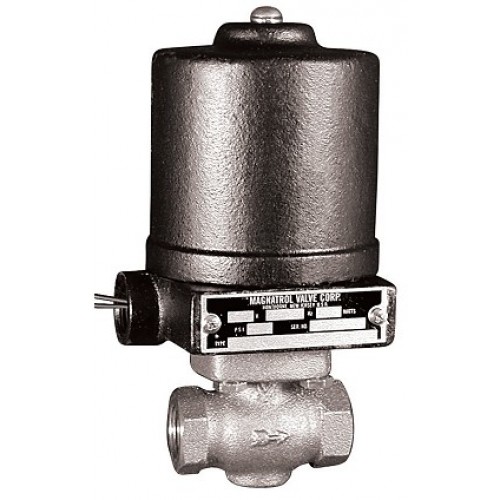

Magnatrol standard STAINLESS STEEL SOLENOID VALVES BULLETIN 3006-J

MAX. FLUID TEMP.:400!a
MAX. STATIC PRESSURE:300 PSI

DIRECT ACTING - ORIFICE SIZES 1/8!± TO 3/8
300 PSI
300 PSI
OPERATION:
Valve opens when energized and closes when de-energized.  In this direct acting valve, when the coil is energized, the stem is lifted from its conical seat by the plunger.
CONSTRUCTION:  (*Wetted parts)
*Valve Body - 304 Stainless Steel Globe Pattern - NPT ends Coil Enclosure - Malleable Iron,1/2 !± NPT conduit conn
*Plunger - 430 Stainless Steel
*Valve Stem - 303 Stainless Steel
*Bonnet Tube - 304 Stainless Steel
*Spring - Inconel
*Body Seal - Non Asbestos Gasket
*Oriice Seal - Metal to Metal
*AC Shading Coil - Silver
*Stem Pin - Inconel Coil - Encapsulated Class H, 18!± lead

APPLICATION:
To control the low of Steam, Hot Liquids, Hot Gases,Cryogenics and any other luids not reactive with construction materials and free of sidement.  Cryogenic luids include liquid oxygen (-297 F), liquid argon(-303 F) FOR OPTIONS and liquid nitrogen (-320 F).  Valve operates from zero tO ACCESSORIES
maximum diferential pressure indicated in table.  Valve SEE PAGES 26 & 27
must be mounted in horizontal pipe with solenoid enclosure vertical and on top.

Type No.
10J21
10J51
10J61
25J21
25J51
25J61
10J22
10J52
10J62
25J22
25J52
25J62
