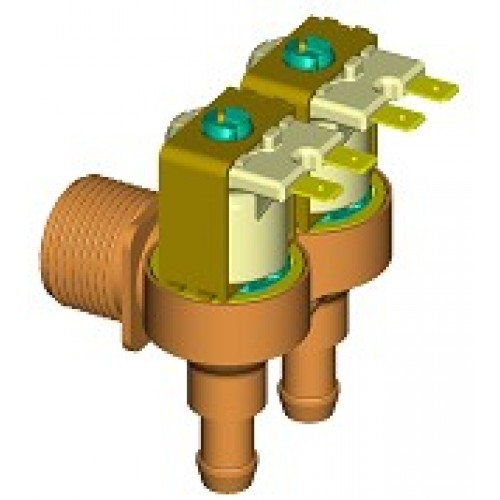

Invensys Water valve V29 series solenoid valve

Part of an extensive line of pilot operated solenoid valves for use in clothes
washers, dishwashers, showers, air conditioning systems and other domestic
or commercial applications.
Fully flexible and designed and produced to meet the stringent requirements
of the markets of today and the future.
Rated Voltage  :     220-240 vac, 110-120 vac, 24 vac & 12 vac. Others upon request.
Rated Frequency :50-60 Hz
Power Draw  :  6 Watts per coil. (3 Watt DC servo-assisted - optional) at 230vac
Coil Insulation :Class F (140!aC Operating Temperature
Ambient Temperature : 60 !aC maximum
Liquid Temperature :90!aC maximum
Operating Cycle Rate : Tu 25!aC, Tm 90!aC & Tu 60!aC, Tm 25!aC - Continuous (100%
Tu 60!aC, Tm 90!aC - 3minutes ON, 5 minutes O
Operating Pressure Range :0.2 to 10 bar
Flow Regulator (Optional) :0.25 to 17 Litres/minute
EMC : Fully compliant
Approvals : Approved by all Major Approvals Agencies World-wide.
EN 60 730-2-8, UL 429, CSA C22.2 etc.
Insulation : Class II. Fully double insulated. No grounding required.
Terminals : Four 6.35 x 0.8 mm male tab terminals. RAST 5 and RAST 2.5 Optional.
