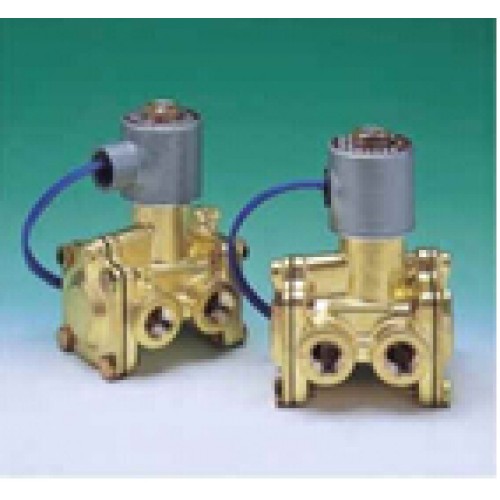

Magster III series solenoid valves are for use in general industrial pneumatic systems.
Based on extensive compact design, the valves have achieved excellent saving and safety in structure and function, realizing easier operation and enhancing reliability of oilless operation.
 |
Suitable for single-acting actuators and diaphragm valves.
Two types (NC, NO) are available.
The valve incorporates plastic cassette valve, low power consumption solenoid, and DIN connector.
|
 |
Compact individual exhaust type and collective exhaust type allowing easy maintenance are available.
Individual exhaust or collective exhaust type manifold can be selected to meet versatile applications.
|
|
 |
| Model code |
313C011C |
313O011C |
| Flow path |
Normally closed |
Normally open |
| Port size |
Rc1/8 |
| Effective area of valve |
1.0mm2 |
| Working pressure |
0～0.8MPa |
| Ambient temp. |
-5～50℃ |
| Solenoid |
Rated voltage |
AC100V,110V,200V,220V(50/60Hz) DC24V,48V,100V,110V,125V |
| Temperature rise |
≦70℃ |
| Insulation class |
JIS C4003 Class B |
| Power consumption |
AC:6VA DC:5W |
| Response time |
≦0.02 s |
| Operating frequency |
Max. 4/s, Min. 1/month |
|
