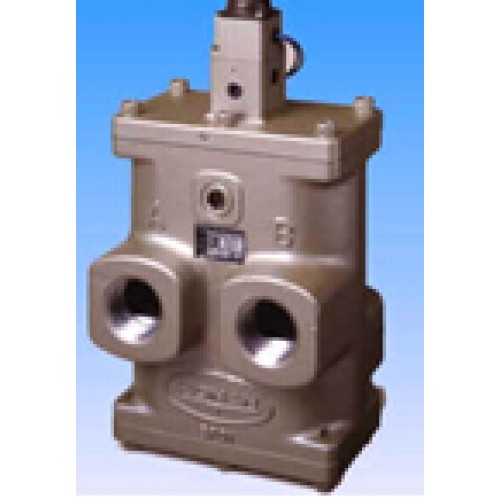

Konan Large-Capacity Poppet-Type Solenoid Valves MVW344F-S series 4-port
| Return | ||||||||
| Model code | MVW344F-04-S | MVW344F-08-S | MVW344F-14-S | |||||
| Port size | Rc3/8 | Rc1/2 | Rc3/4 | Rc1 | Rc1 1/4 | Rc1 1/2 | Rc2 | |
| Effective area of valve | 70mm2 | 80mm2 | 200mm2 | 220mm2 | 700mm2 | 750mm2 | 800mm2 | |
| Working pressure | 0.2～0.7MPa | |||||||
| Ambient temp. | -20～50℃ | |||||||
| Solenoid | Rated voltage | AC100V,110V,[125V],200V,220V(50/60Hz) DC24V,48V,100V,[110V] | ||||||
| Temperature rise | ≦80℃ | |||||||
| Insulation class | JIS C4003 Class B | |||||||
| Response time | ≦0.05 s | ≦0.07 s | ≦0.15 s | |||||
| Operating frequency | Max. 2/s | |||||||
| Attachment position | As desired | |||||||
