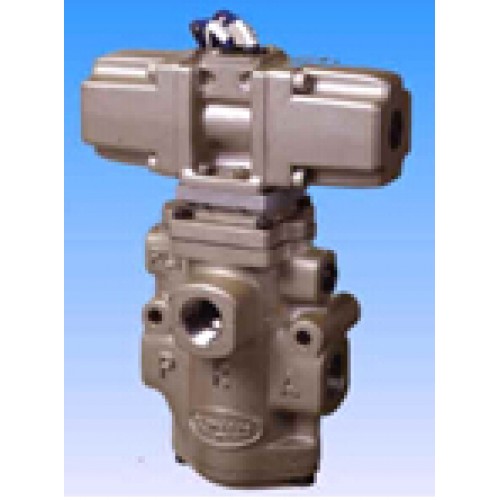

Konan Large-Capacity Poppet-Type Solenoid Valves MVW7N-D series 3-port
| Hold | ||||||||
| Model code | MVW7N-04-D | MVW7N-08-D | MVW7N-14-D | |||||
| Port size | Rc3/8 | Rc1/2 | Rc3/4 | Rc1 | Rc1 1/4 | Rc1 1/2 | Rc2 | |
| Effective area of valve | 70mm2 | 80mm2 | 200mm2 | 220mm2 | 700mm2 | 750mm2 | 800mm2 | |
| Working pressure | 0.2～0.7MPa | |||||||
| Ambient temp. | -20～50℃ | |||||||
| Solenoid | Rated voltage | AC100V,110V,200V,220V(50/60Hz) DC24V,48V,100V | ||||||
| Temperature rise | ≦80℃ | |||||||
| Insulation class | JIS C4003 Class B | |||||||
| Response time | ≦0.03 s | ≦0.05 s | ≦0.2 s | |||||
| Operating frequency | Max. 2/s | |||||||
| Attachment position | Place the valve with pilot valve in a horizontal position. | |||||||
