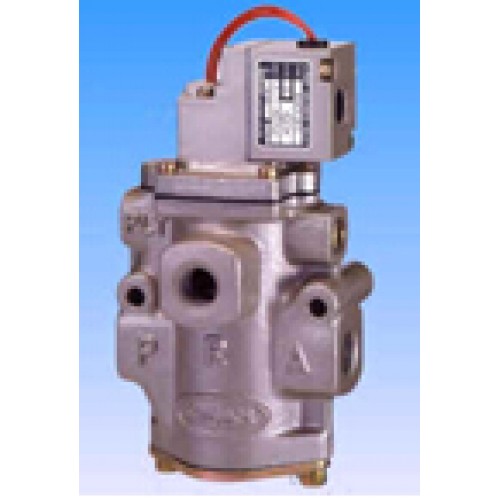

Konan Large-Capacity Poppet-Type Solenoid Valves MVW7F-S,MVW7FR-S series 3-port
Employing poppet structure for both main valve and pilot valve, this product has achieved optimal resistance to drains and dusts.
Incorporated exhaust pressure protection system ensures reliable operation under any piping conditions.
Valve system is resistant to transient phenomena at switching, thus decreases air loss
| Return | ||||||||
| Model code | Normally closed | MVW7F-04-S | MVW7F-08-S | MVW7F-14-S | ||||
| Normally open | MVW7FR-04-S | MVW7FR-08-S | MVW7FR-14-S | |||||
| Port size | Rc3/8 | Rc1/2 | Rc3/4 | Rc1 | Rc1 1/4 | Rc1 1/2 | Rc2 | |
| Effective area of valve | 70mm2 | 80mm2 | 200mm2 | 220mm2 | 700mm2 | 750mm2 | 800mm2 | |
| Working pressure | 0.2～0.7MPa | |||||||
| Ambient temp. | -20～50℃ | |||||||
| Solenoid | Rated voltage | AC100V,110V,125V,200V,220V(50/60Hz) DC24V,48V,100V,110V | ||||||
| Temperature rise | ≦80℃ | |||||||
| Insulation class | JIS C4003 Class B | |||||||
| Response time | ≦0.05 s | ≦0.05 s | ≦0.18 s | |||||
| Operating frequency | Max. 2/s | |||||||
| Attachment position | As desired | |||||||
