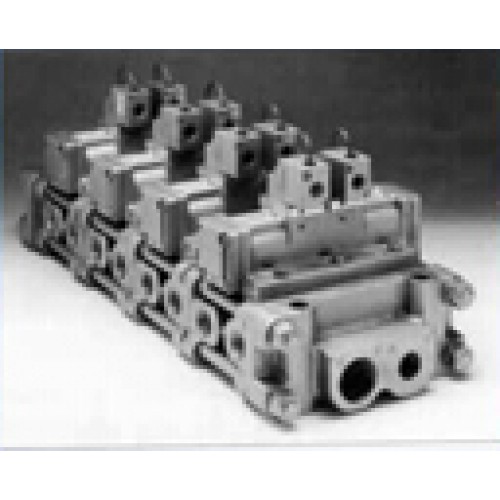

Konan MAGSTARⅡF Manifold information sub-plate type 5-port solenoid valve

Model code Port size Applicable solenoid valve Max. number of valves to be connected   Notes
Collective exhaust MVM5F-03-SP1

  Rc3/8

   Rc1/2

MVS2F-03

MVD2F-03

MVPCF-03

MVPOF-03

MVPEF-03

6

Single manifold base for each valve can be connected with bolt as needed, which allows inspection and exchange of each solenoid valve without disconnection of wiring.

OUT port type is for lateral connection for SP1 and bottom connection for SP2.Single-acting, double-acting, and 3-position solenoid valves can be used in combination.

MVM5F-03-SP2

MVM5F-08-SP1

  Rc3/4

    Rc 1

MVS2F-08

MVD2F-08

MVPCF-08

MVPOF-08

MVPEF-08

4
MVM5F-08-SP2
