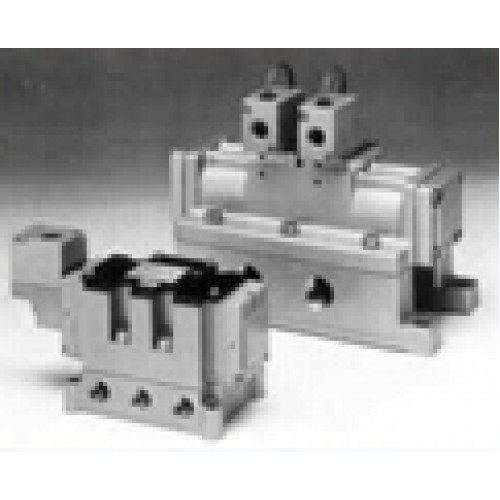

Konan MAGSTARⅡF MVS(D)2F,MVPC(O)(E)F series 5-port solenoid valves Spool valve
| Model code | Return | MVS2F-03 | MVS2F-08 | ||||
| Hold | MVD2F-03 | MVD2F-08 | |||||
| Closed center | MVPCF-03 | MVPCF-08 | |||||
| Center open to exhaust | MVPOF-03 | MVPOF-08 | |||||
| Center open to pressure | MVPEF-03 | MVPEF-08 | |||||
| Port size | Rc1/4 | Rc3/8 | Rc1/2 | Rc3/4 | Rc 1 | ||
| Effective area of valve | 40mm2 | 55mm2 | 70mm2 | 175mm2 | 185mm2 | ||
| Working pressure | 0.2～0.8MPa | 0.12～0.7MPa | |||||
| Ambient temp. | -5～50℃ | -20～50℃ | |||||
| Solenoid | Rated voltage | AC100V,110V,125V,200V,220V(50/60Hz) DC24V,48V,100V,110V | |||||
| Temperature rise | ≦80℃ | ||||||
| Insulation class | JIS C4003 Class B | ||||||
| Power consumption | AC:10VA DC:6W | ||||||
| Response time | AC: ≦0.03 sec, DC: ≦0.05 sec | AC: ≦0.07 sec, DC: ≦0.08 sec | |||||
