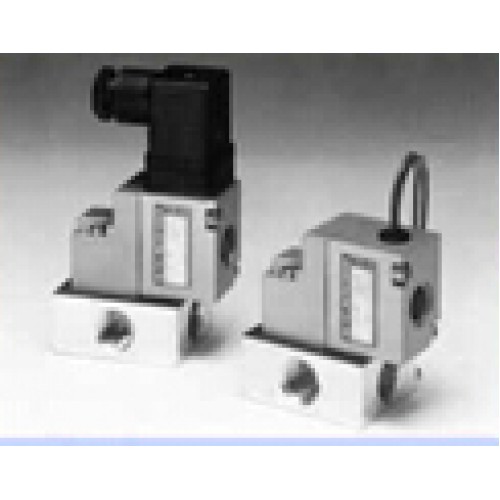

Konan MAGSTARⅡF MVW1F,MVW1RFseries 3-port solenoid valves Poppet valve MVW1F-02 MVW1RF-02
Large connection terminal enables easy wiring connection. (03 / 08 type) Highly durable, reliable performance of the solenoid valve has been achieved using oilless packing for a spool packing of the main valve. (03 type)
| Model code | MVW1F-02 | MVW1RF-02 | |
| Flow path | Normally closed | Normally open | |
| Port size | Rc1/8 Rc1/4 Rc3/8 | ||
| Effective area of valve | 3.0mm2 | ||
| Working pressure | 0～0.8MPa | ||
| Ambient temp. | -20～50℃ | ||
| Solenoid | Rated voltage | AC100V,110V,125V,200V,220V(50/60Hz) DC24V,48V,100V,110V | |
| Temperature rise | ≦80℃ | ||
| Insulation class | JIS C4003 Class B | ||
| Power consumption | AC:10VA DC:6W | ||
| Response time | AC: ≦0.02 sec, DC: ≦0.03 sec | ||
| Operating frequency | Max. 4/sec, Min. 1/6 months | ||
